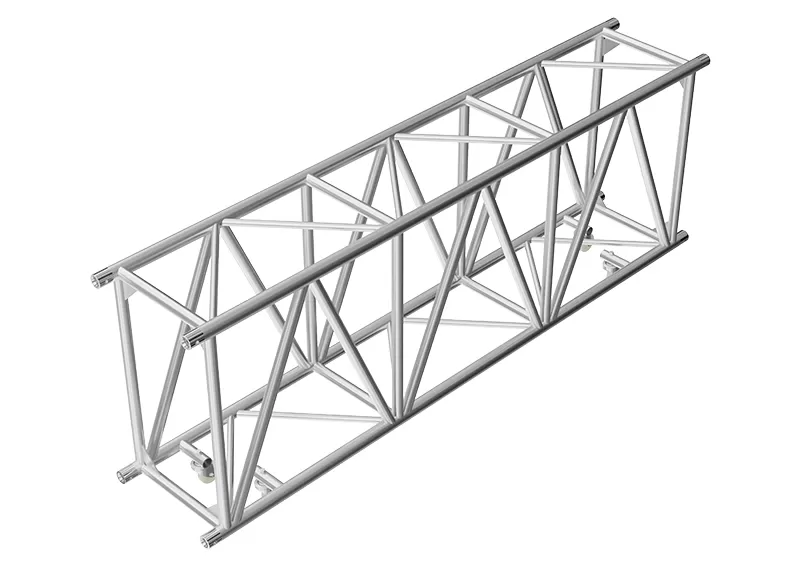

The TT104 is a heavy-duty rectangular aluminum truss system designed for large-scale applications. Constructed from high-strength EN AW-6082 T6 aluminum, it features 60×6 mm main tubes and 30×3 mm braces. With external dimensions of 580×1010 mm, it supports spans up to 44 meters and is suitable for both indoor and outdoor installations. The truss utilizes a Quicklock connection system for fast assembly and is compatible with various clamps and accessories. Its robust design makes it ideal for roof systems, grid networks, and other heavy-duty structures.
The TT104 truss system is engineered to meet the demands of professional event setups. Its robust design and compatibility with various configurations make it a reliable choice for creating stable and secure structures. Whether you're constructing a temporary stage, a complex exhibition structure, or a large-scale roof system, the TT104 provides the flexibility and strength needed for successful installations.
SPECIFICATIONS
| Main tube | 60x6mm(2.4x0.02 inch) |
| Braces | 30x3mm(1.18x0.12 inch) |
| Alloy | EN-AW 6082-T6 |
TT104 STRAIGHT SEGMENT
| Span(m) | 8m | 10m | 12m | 14m | 16m | 18m | 20m | 22m | 24m | 26m | 28m | 30m | 32m | 34m | |||
| Distrib.Load(kg/m) | 1441.6 | 1148.7 | 835.7 | 607.9 | 460 | 358.7 | 286.2 | 232.5 | 191.7 | 160 | 134.8 | 114.4 | 97.8 | 84 | |||
| Deflection(mm) | 11.9 | 23.3 | 35.4 | 48.3 | 63.1 | 80 | 98.9 | 119.9 | 142.9 | 168.1 | 195.3 | 224.8 | 256.4 | 290.2 | |||
| Point Load(kg) | 5880 | 5157 | 4513 | 4000 | 3570 | 3196 | 2861.7 | 2557.8 | 2300.7 | 2079.6 | 1886.8 | 1716.7 | 1564.9 | 1428.4 | |||
| Deflection(mm) | 9.8 | 16.9 | 25.8 | 36.8 | 49.7 | 64.4 | 80.7 | 98.3 | 117.7 | 139.1 | 162.5 | 188 | 215.7 | 245.7 | |||
1. High Load Capacity – Supports spans up to 44 meters, accommodating heavy loads.
2. Durable Construction – Made from EN AW-6082 T6 aluminum for strength and longevity.
3. Quick Assembly – Features a Quicklock connection system for efficient setup.
4. Versatile Applications – Suitable for both indoor and outdoor installations.
5. Modular Design – Compatible with various clamps and accessories for flexible configurations.
6. TÜV Certified – Ensures compliance with safety standards.
