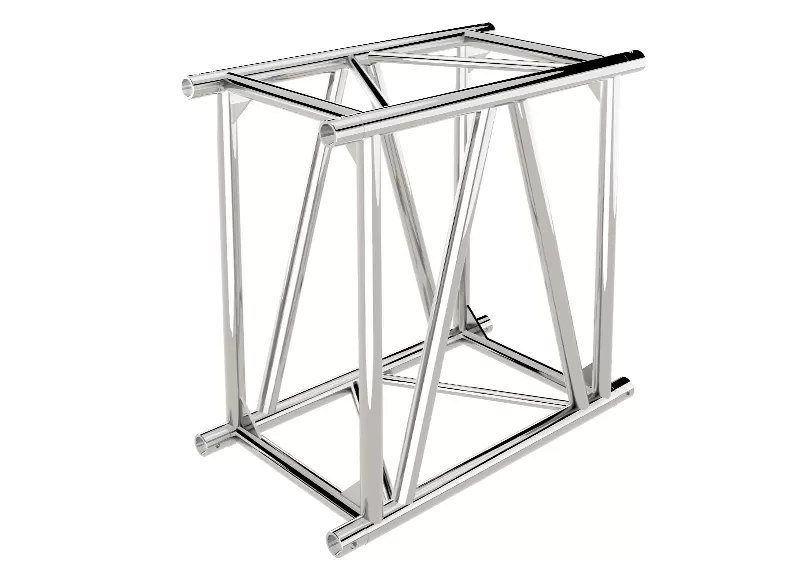

The T104 Spigot Truss is a robust rectangular aluminum truss system designed for medium-duty applications. Constructed from high-strength EN AW-6082 T6 aluminum, it features 60×5 mm main tubes and 50×3 mm vice tubes, with braces measuring 50×3 mm and 30×3 mm. This truss is ideal for indoor and outdoor installations, including stage rigging, exhibition setups, and event infrastructure. It utilizes a spigot connection system for quick and secure assembly.
The T104 Spigot Truss system is engineered to meet the demands of professional event setups. Its robust design and compatibility with various configurations make it a reliable choice for creating stable and secure structures. Whether you're constructing a temporary stage, a complex exhibition structure, or a large-scale roof system, the T104 provides the flexibility and strength needed for successful installations.
SPECIFICATIONS
| Main tube | 60x5mm(2.4x0.197 inch) |
| Vice tube | 50x3mm(2x0.16 inch) |
| Braces | 50x3mm(2x0.16 inch) |
| 30x3mm(1.2x0.16 inch) | |
| Alloy | EN-AW 6082-T6 |

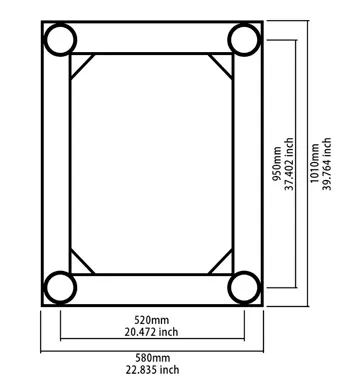

T104 STRAIGHT SEGMENT
| Span(m) | 22m | 24m | 26m | 28m | 30m | 32m | 34m | |||
| Distrib.Load(kg/m) | 157 | 125 | 100 | 87 | 71 | 58 | 45 | |||
| Deflection(mm) | 94 | 110 | 126 | 150 | 174 | 195 | 225 | |||
| Point Load(kg) | 1850 | 1685 | 1500 | 1390 | 1265 | 1135 | 1053 | |||
| Deflection(mm) | 87 | 108 | 127 | 146 | 168 | 192 | 218 | |||
1. High Load Capacity – Supports spans up to 34 meters, accommodating substantial loads.
2. Durable Construction – Made from EN AW-6082 T6 aluminum for strength and longevity.
3. Quick Assembly – Features a spigot connection system for efficient setup.
4. Versatile Applications – Suitable for both indoor and outdoor installations.
5. Modular Design – Compatible with various clamps and accessories for flexible configurations.
6. TÜV Certified – Ensures compliance with safety standards.
