Spigot Truss HT44 Series

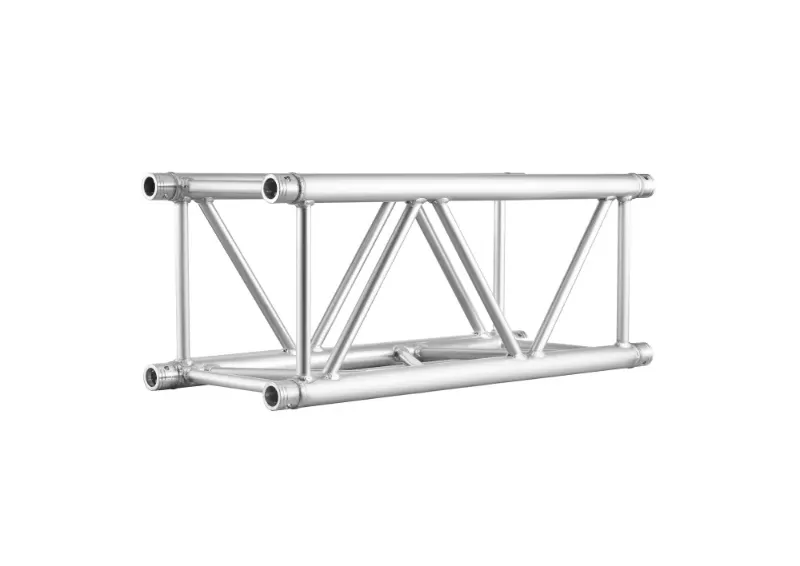

WTC HT44 Series Square Spigot Truss

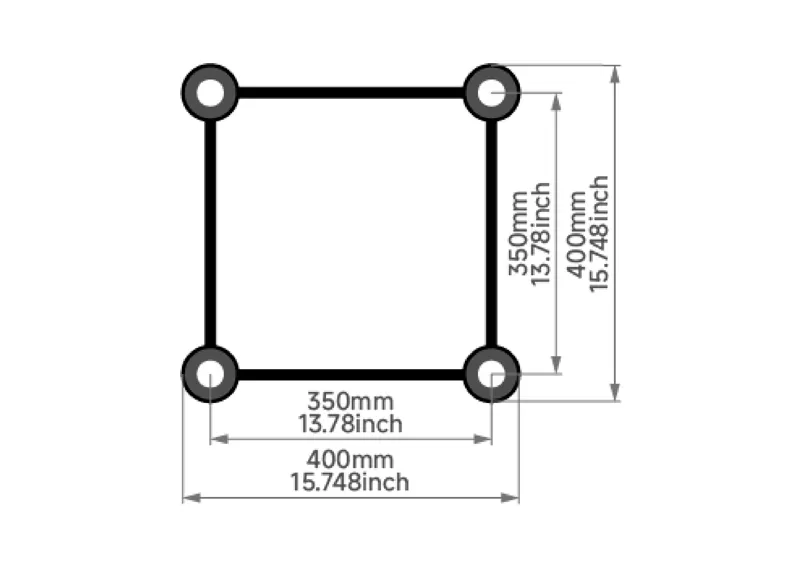

Constructed from high-strength EN AW-6082 T6 aluminum, the HT44 Square Truss features 50 mm main tubes and 25 mm braces with a 400 mm external dimension. Engineered for spans up to 16 meters, it offers exceptional load capacity and stability. Ideal for stages, exhibitions, and event structures, it provides quick assembly, modular flexibility, and reliable performance.

SPECIFICATIONS

Main tube50x3mm(2x0.12 inch)
Braces25x3mm(1x0.12 inch)
AlloyEN-AW 6082-T6

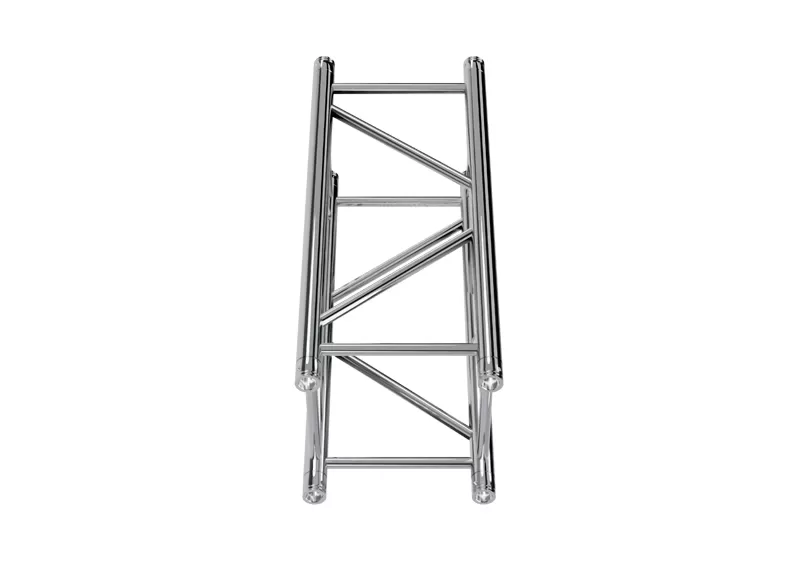

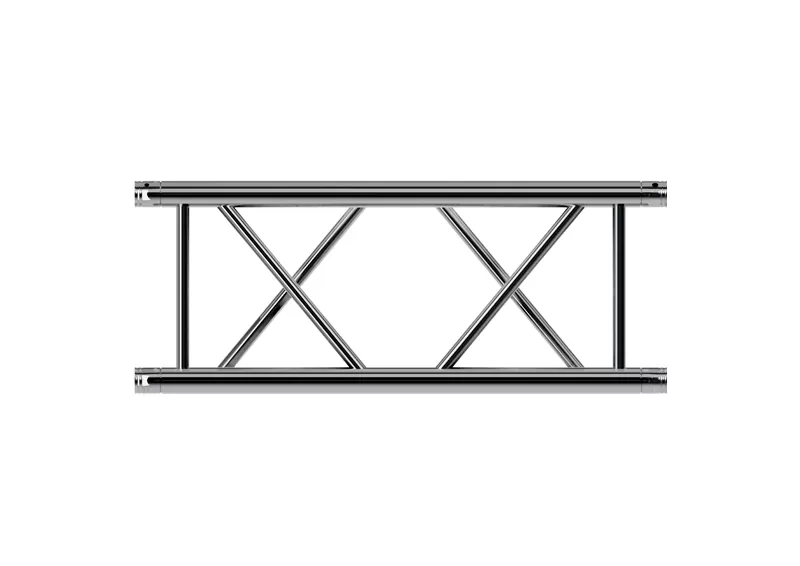

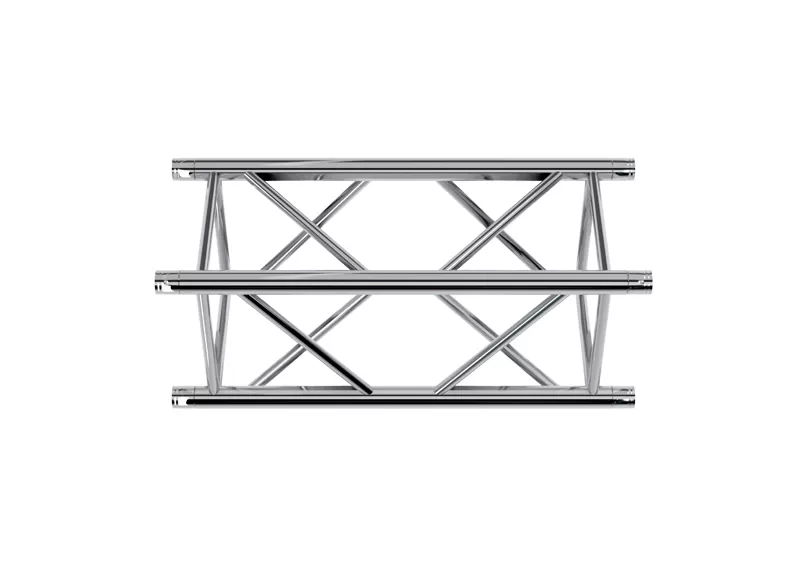

HT44 BOX STRAIGHT SEGMENT

HT44 BOX STRAIGHT SEGMENT

Download
Loading Table of Spigot Truss HT44 Series
Advantages of HT44 Square Truss
Span(m)2m4m6m8m10m12m14m16m
Distrib.Load(kg/m)23279014172431621128261
Deflection(mm)1.3818.935.458.886.5119.8158.7
Point Load(kg)326718031252971811675573477
Deflection(mm)1.46.415.228.547.670.598.3127.8


  • 1. Premium Material – Made from high-strength EN AW-6082 T6 aluminum for excellent durability and corrosion resistance.

  • 2. Heavy-Duty Load Capacity – Designed to support substantial weights and long spans with safety and stability.

  • 3. Quick Assembly – Innovative quick-lock system enables fast, tool-free setup and teardown.

  • 4. Versatile Applications – Perfect for stages, exhibitions, trade shows, and large event structures.

  • 5. Modular Design – Compatible with various accessories and components for flexible configurations.

  • 6. Lightweight & Portable – Easy to transport and maneuver without compromising strength.

  • 7. Certified Safety – Meets international safety standards, ensuring reliable performance.
