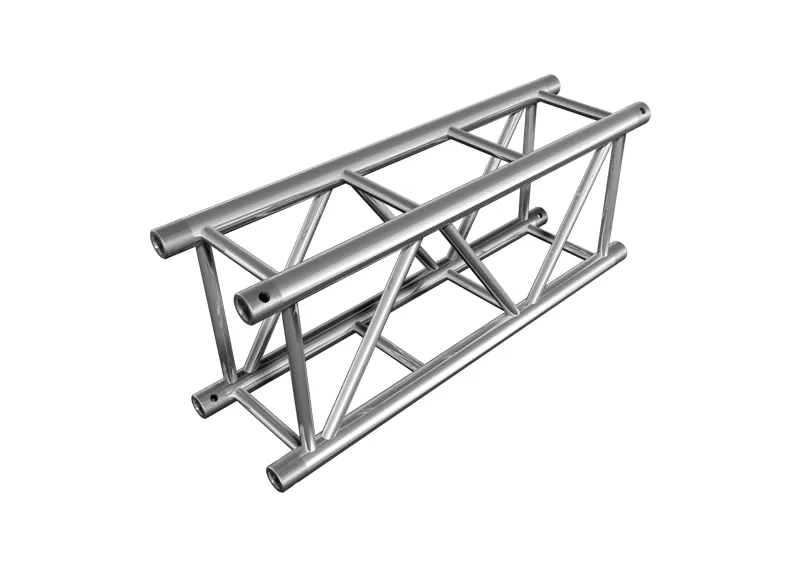

The FTR4030 is a versatile rectangular aluminum truss system designed for medium-duty applications. Constructed from high-strength EN AW-6082 T6 aluminum, it features 50×3 mm main tubes and 25×3 mm braces. With external dimensions of 290×400 mm, it supports spans up to 18 meters and is suitable for both indoor and outdoor installations. The truss utilizes a spigot connection system for fast assembly and is compatible with various clamps and accessories. Its robust design makes it ideal for stage rigging, exhibition setups, and event infrastructure.
The FTR4030 truss system is engineered to meet the demands of professional event setups. Its robust design and compatibility with various configurations make it a reliable choice for creating stable and secure structures. Whether you're constructing a temporary stage, a complex exhibition structure, or a large-scale roof system, the FTR4030 provides the flexibility and strength needed for successful installations.
SPECIFICATIONS
| Main tube | 50x3mm(2x0.12 inch) |
| Braces | 25x3mm(1x0.12 inch) |
| Alloy | EN-AW 6082-T6 |

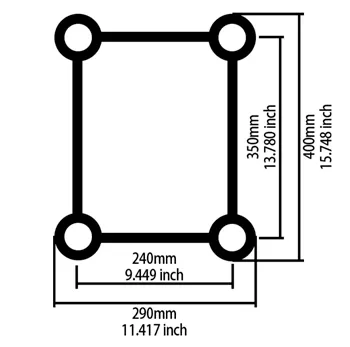

FTR4030 STRAIGHT SEGMENT
| Span(m) | 6m | 8m | 10m | 12m | 14m | 16m | 18m | |||
| Distrib.Load(kg/m) | 464 | 261 | 167 | 115 | 85 | 63 | 47 | |||
| Deflection(mm) | 20.9 | 37.5 | 59.2 | 85.8 | 119.3 | 154.1 | 190 | |||
| Point Load(kg) | 1392 | 1045 | 833 | 688 | 592 | 501 | 421 | |||
| Deflection(mm) | 16.8 | 30.2 | 47.7 | 69.5 | 97 | 126 | 156.3 | |||
1. High Load Capacity – Supports spans up to 18 meters, accommodating heavy loads.
2. Durable Construction – Made from EN AW-6082 T6 aluminum for strength and longevity.
3. Quick Assembly – Features a spigot connection system for efficient setup.
4. Versatile Applications – Suitable for both indoor and outdoor installations.
5. Modular Design – Compatible with various clamps and accessories for flexible configurations.
6. TÜV Certified – Ensures compliance with safety standards.
