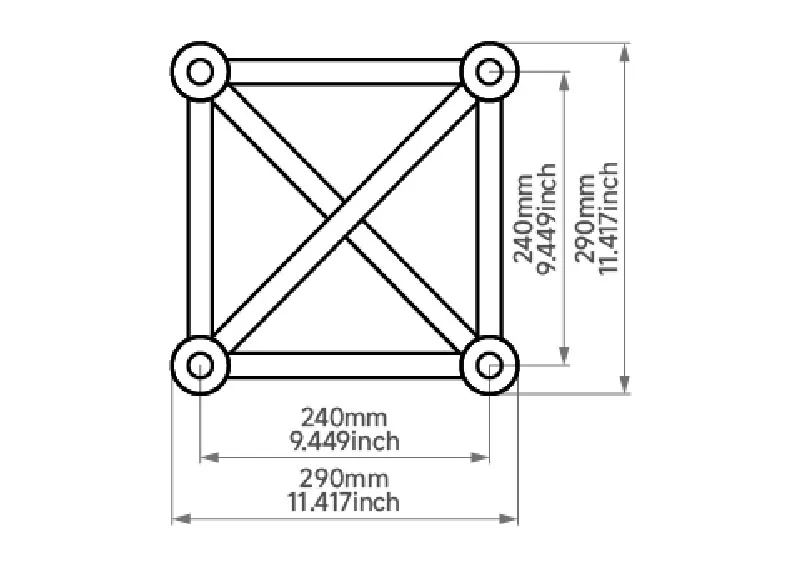

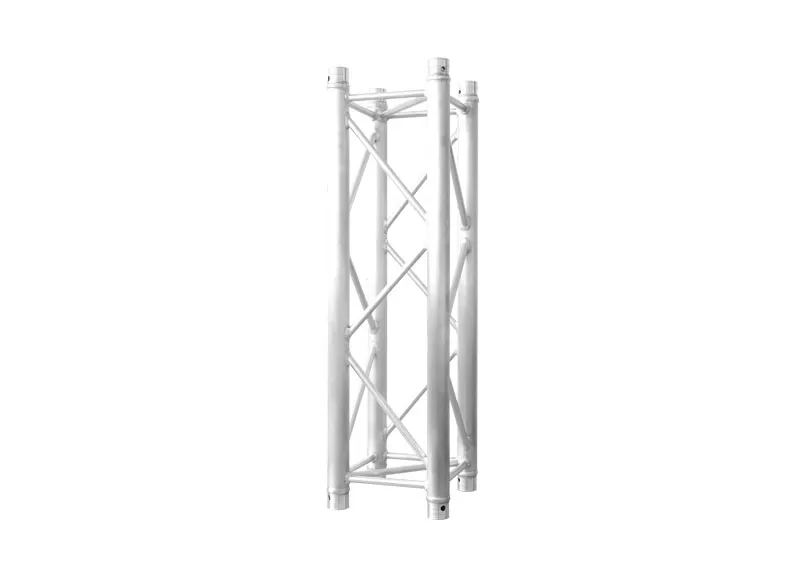

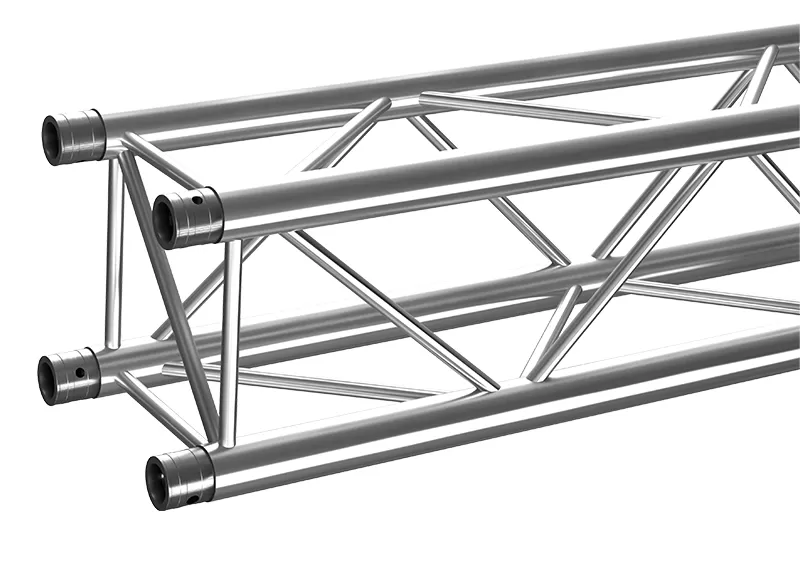

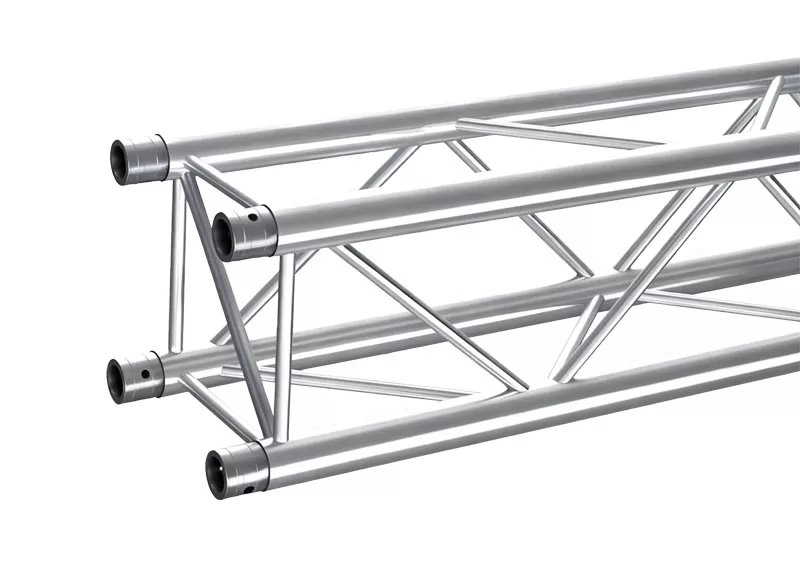

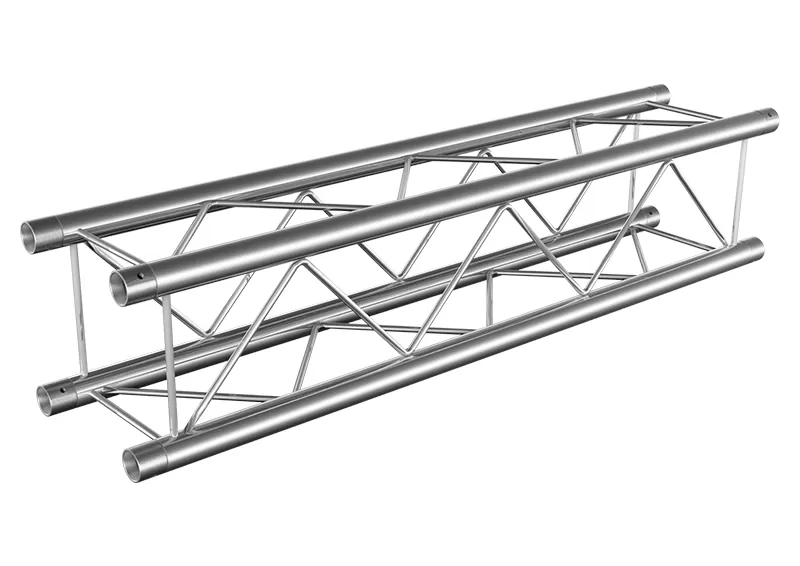

The PT34 is a square-shaped aluminum truss system with a 290 mm (11.42 in) external dimension, designed for medium-duty applications. Constructed from high-strength EN AW-6082 T6 aluminum, it features 50 × 2 mm main tubes and 16 × 2 mm braces. Certified by TÜV SÜD, it is compatible with Prolyte trusses, making it suitable for both indoor and outdoor installations. The PT34 truss system's robust design and compatibility with Prolyte trusses make it a reliable choice for professionals seeking efficiency and safety in their installations. Its modularity allows for creative and adaptable setups, catering to a wide range of event and exhibition needs.
SPECIFICATIONS
| Length (L) | 1m |
| Section Type | SQUARE |
| Weight (W) | 5.90kg |

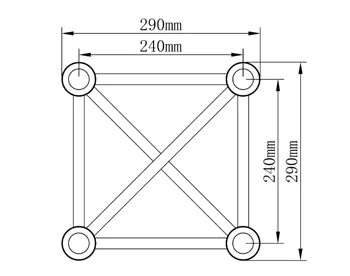

PT34 SINGLE PIPE SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m |
| Distrib.Load(kg/m) | 785 | 390 | 229 | 130 | 81 | 53 |
| Deflection(mm) | 1.4 | 10.8 | 32.5 | 59.3 | 92.5 | 130.3 |
| Point Load(kg) | 1570 | 961 | 688 | 520 | 406 | 321 |
| Deflection(mm) | 2.2 | 10.7 | 26.2 | 47.9 | 75.1 | 106.6 |
1. Prolyte Compatibility – Designed to seamlessly integrate with Prolyte trusses, facilitating easy expansion and customization.
2. Certified Load Capacity – TÜV SÜD certified, ensuring safety and reliability in various applications.
3. Versatile Applications – Ideal for medium-sized structures, including exhibition booths, small roof systems, and event setups.
4. Quick Assembly – Features a spigot connection system for fast and secure assembly.
5. Durable Construction – Made from high-strength aluminum, offering longevity and resistance to wear.
6. Modular Design – Available in various lengths and corner configurations for flexible design options.
