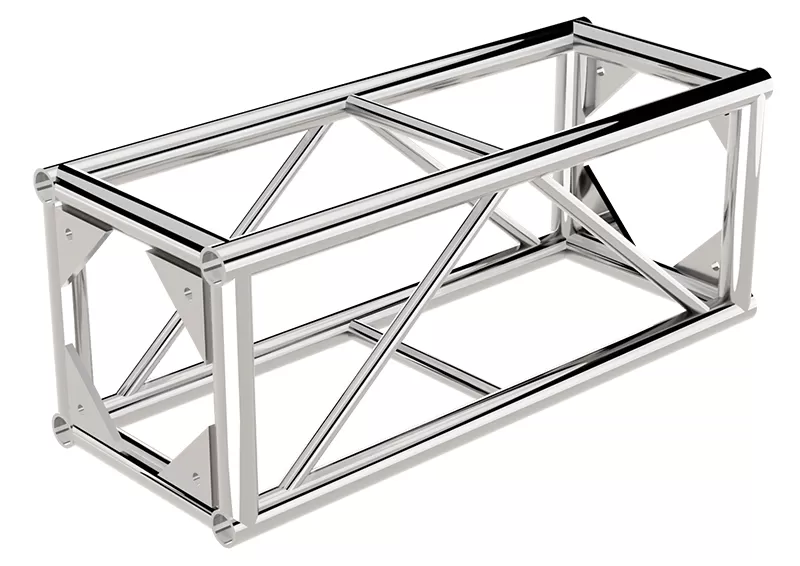

HTI44 series square bolted truss is manufactured from high-strength EN AW-6082 T6 aluminum alloy, ensuring durability and stability. Specification of 400mm*400mm, available in various length and connection options, it offers excellent loading capacity for large spans. Good choice for stages, exhibitions, and event structures, its modular design allows easy assembly, straight but stable when connecting in long spans, and reliable performance for various scenes applications.
| Main tube | 50x3mm |
| Vice tube | 50x2mm |
| Braces | 25x3mm |
| Alloy | EN-AW 6082-T6 |

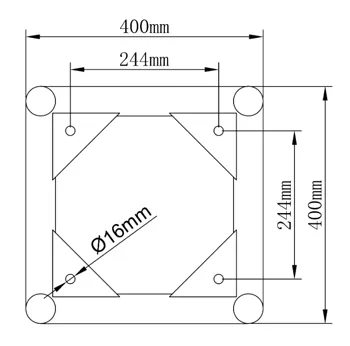

HTI44 STRAIGHT SEGMENT
| Span(m) | 6m | 8m | 10m | 12m | 14m | 16m | ||||
| Distrib.Load(kg/m) | 295 | 201 | 118 | 67 | 46 | 31 | ||||
| Deflection(mm) | 15 | 23 | 31 | 40 | 50 | 75 | ||||
| Point Load(kg) | 978 | 804 | 590 | 402 | 322 | 248 | ||||
| Deflection(mm) | 12 | 22 | 33 | 43 | 59 | 77 | ||||
Advantages of the HTI44 Series Bolted Truss:
1. Heavy-Duty Performance – Designed for large-scale structures with superior load-bearing capacity.
2. High-Grade Aluminum – Manufactured from EN AW-6082 T6 for maximum strength and corrosion resistance.
3. Large 400mm Profile – Ideal for longer spans and high structural stability requirements.
4. Bolted Connection System – Ensures strong joints, precise alignment, and easy part replacement.
5. Modular Design – Offers flexibility for complex stage roofs, LED screen support, and outdoor structures.
6. Long Span Capability – Perfect for applications requiring extended coverage without extra supports.
7. Professional Finish – Delivers a clean, robust appearance for premium events and installations.
