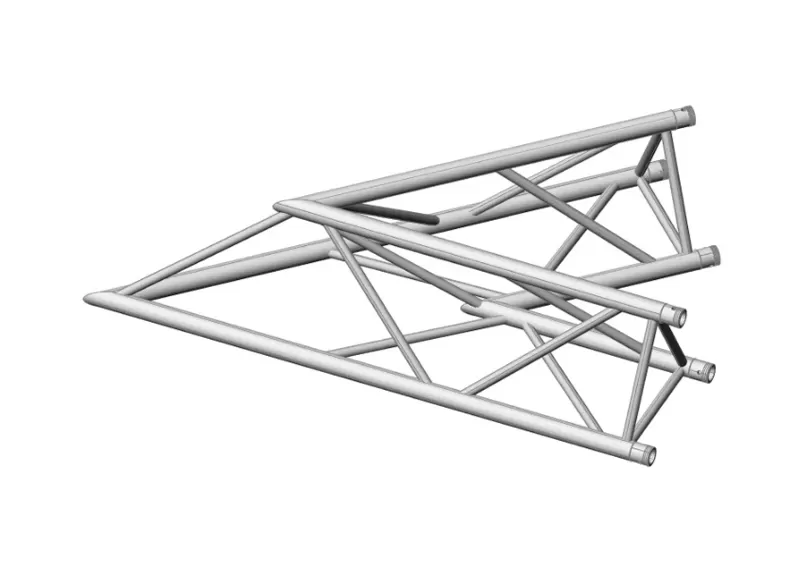

Manufactured from premium EN AW-6082 T6 aluminum, the HT43 Triangle Corner Truss features 50 mm main tubes and 25 mm braces. Designed for precise 3-point connections, it provides robust stability and seamless compatibility with HT43 straight trusses. Ideal for staging, exhibitions, and event constructions, it enables quick, tool-free assembly and offers excellent load capacity and flexible modular design.
SPECIFICATIONS
| Length (L) | 1.5m (4.92ft) |
| Angle (A) | 2-way 45° corner |
| Weight (W) | 10.9kgs (24.03lbs) |

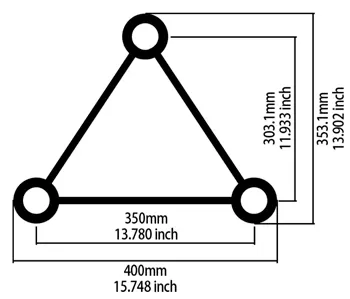

HT43 TRIANGLE STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | 14m | 16m | |||
| Distrib.Load(kg/m) | 1412 | 457 | 212 | 119 | 75 | 51 | 34 | 25 | |||
| Deflection(mm) | 1.6 | 8.1 | 19.4 | 35.3 | 56.2 | 81.9 | 108.8 | 140.9 | |||
| Point Load(kg) | 1412 | 913 | 636 | 475 | 375 | 304 | 241 | 207 | |||
| Deflection(mm) | 1.2 | 6.5 | 15.7 | 28.6 | 45.9 | 67.5 | 90.7 | 123.7 | |||
Durable Material: Crafted from premium EN AW-6082 T6 aluminum, ensuring long-lasting strength and corrosion resistance.
Precision Engineering: Designed for accurate 3-point connections, delivering superior structural stability and reliability.
Seamless Integration: Fully compatible with HT43 straight truss components for versatile and customizable configurations.
Quick Assembly: Tool-free connection system simplifies setup and reduces labor time.
High Load Capacity: Engineered to support heavy loads, ideal for demanding stage, exhibition, and event applications.
Flexible Design Options: Available in multiple angles, accommodating diverse project requirements and creative designs.
Lightweight & Portable: Easy to transport and handle on site without compromising structural integrity.
