HT4040-MCB-6 connection box, crafted from premium EN AW-6082 T6 aluminum alloy, is a alternative to square truss, specification of 400mm*400mm, offering optimized performance from strength to weight . Its rectangular profile allow greater flexibility and creativeness for special structure designs, making it ideal for stages, LED screen support, exhibition booths, and architectural installations. Available in lengths customized, it ensures superior loading capacity and stability while maintaining easy transport and quick assembly. Perfect for unique dimensions projects design and quick installation, and provide reliable structural integrity.
| Length (L) | 0.4m |
| Angle (A) | Connection Box multiple ways |

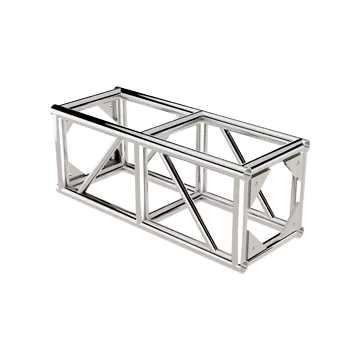

HT4040 STRAIGHT SEGMENT
| Span(m) | 5m | 6m | 7m | 8m | 9m | 10m | 11m | 12m | 13m | 14m | 15m | 16m | |||
| Distrib.Load(kg/m) | 443.5 | 321.3 | 233.7 | 174.6 | 127.3 | 113.7 | 95.5 | 78.6 | 64.5 | 53.9 | 44.1 | 37.9 | |||
| Deflection(mm) | 15 | 22 | 30 | 40 | 52 | 62 | 75 | 88 | 100 | 115 | 128 | 145 | |||
| Point Load(kg) | 1452.3 | 1159.8 | 1019.3 | 890.5 | 763.9 | 665.9 | 580.3 | 518.8 | 447.3 | 401.7 | 354.5 | 311.1 | |||
Advantages for the HT4040 Series Bolted Truss:
1. High Load Capacity – Designed for heavy-duty applications requiring strong structural integrity.
2. Premium Aluminum Alloy – Made from EN AW-6082 T6 for superior strength and corrosion resistance.
3. 400mm x 400mm Profile – Provides excellent stability for large spans and demanding installations.
4. Bolted Connection System – Delivers precise alignment, easy assembly, and cost-effective maintenance.
5. Modular Flexibility – Ideal for stage roofs, LED screens, and large-scale event structures.
6. Transport-Friendly Design – Detachable components reduce storage and transportation costs.
7. Professional Appearance – Robust, clean finish suitable for high-profile indoor and outdoor projects.
