FTB-L-CB-6 connection box is manufactured from high-strength EN AW-6082 T6 aluminum, ensuring durability and stability. Specification of 305mm*305mm, available in multiple ways connection options, it offers excellent load-bearing capacity for large spans. Ideal for stages, exhibitions, and event structures, its modular design ensures easy assembly, precise alignment, and reliable performance for demanding applications.
| Angle (A) | Connection Box multiple ways |
| Weight (W) | 11.6kgs(25.49lb) |

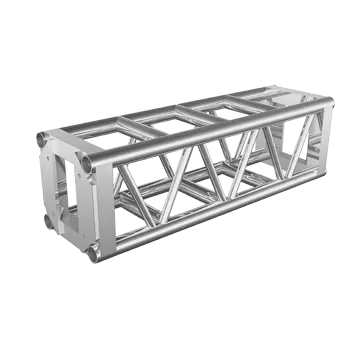

FTB-L STRAIGHT SEGMENT
| Span(m) | 1.52m | 3.05m | 4.57m | 6.1m | 7.6m | 9.14m | 12.2m | |||
| Distrib.Load(kg/m) | 1512 | 605 | 342 | 187 | 116 | 38 | 47 | |||
| Deflection(mm) | 0.6 | 3,6 | 10.6 | 18.9 | 29.6 | 42.8 | 77 | |||
| Point Load(kg) | 1149 | 922 | 782 | 571 | 442 | 353 | 234 | |||
| Deflection(mm) | 0.5 | 3.3 | 9.7 | 17.3 | 27.2 | 39.3 | 71.1 | |||
FTB-L Series (Light-Duty) Advantages:
Lightweight Construction – Easier handling and transport, reducing labor costs.
Cost-Effective – Lower material cost makes it ideal for budget-conscious projects.
Easy Assembly – Quick installation due to smaller components and bolted design.
Versatile for Small Projects – Perfect for exhibition booths, trade shows, and decorative structures.
Compact Storage – Detachable components save space during storage and shipping.
Flexibility – Ideal for short spans and simple setups without excessive load requirements.
