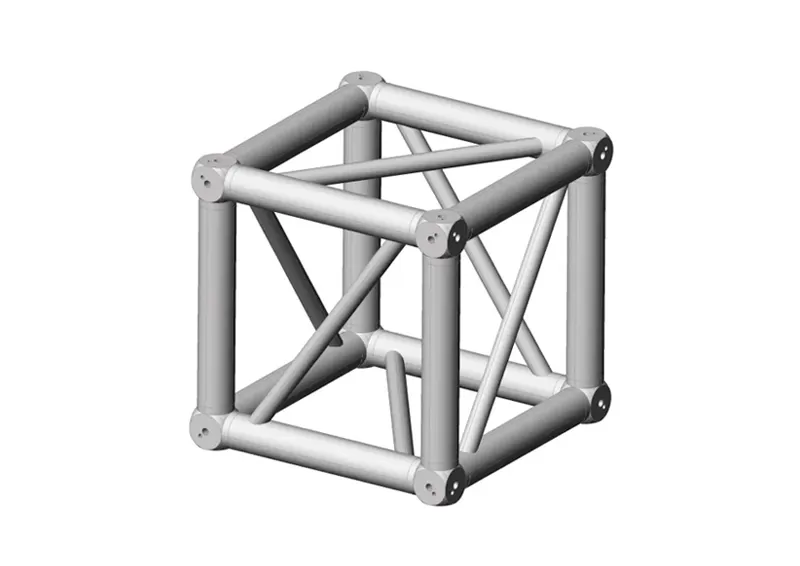

Engineered from high-grade EN AW‑6082 T6 aluminum, the F44‑MCB weighs approximately 7.9 kg and connects up to six truss segments within a compact 400 mm form. Ideal for concert stages, exhibition frameworks, and complex configurations, it enables rapid assembly, versatile layouts, and reliable load support in premium event structures.
The F44‑MCB simplifies complex truss assemblies while maintaining structural strength and aesthetic integrity. Its modular design, combined with TÜV-certified performance, makes it ideal for dynamic environments-ranging from touring stages to permanent retail installations.
SPECIFICATIONS
| Length (L) | 0.29m (0.95ft) |
| Angle (A) | Universal block |
| Weight (W) | 4.7kgs(10.36lbs) |
F44 BOX STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | 14m | 16m | |||
| Distrib.Load(kg/m) | 1805 | 595 | 274 | 163 | 106 | 73 | 52 | 38 | |||
| Deflection(mm) | 1.5 | 7.8 | 18.4 | 35.2 | 57.3 | 83.5 | 114.9 | 151.1 | |||
| Point Load(kg) | 1805 | 1190 | 823 | 653 | 532 | 436 | 364 | 304 | |||
| Deflection(mm) | 1.2 | 6.2 | 14.8 | 28.5 | 46.6 | 68.4 | 94.7 | 124.5 | |||
1. Robust Material Construction – Crafted from EN AW‑6082 T6 aluminum with 50 mm tubes and 3 mm wall thickness for durability.
2. Multi-Way Connectivity – Supports six connection points in one compact unit-eliminating the need for multiple corner pieces.
3. Quick Assembly – Includes conical connector sets, pins, and clips for fast, tool-free installation.
4. TÜV-Certified System Integration – Part of the F44 series, offering high load capacity and minimal deflection.
5. Compact Design – At 400 mm per side, it offers substantial functionality without bulk.
6. Versatile Applications – Perfect for large-scale stages, exhibition systems, and architectural truss structures.
7. Customizable Finish – Powder coating available in any RAL color to match branding or design environments.
