F42 series ladder truss corners are made of EN AW-6082 T6 aluminum alloy, which for precision and durability. Featuring a 400mm specification profile and spigot connection, main tube dimension in 50*2mm and brace in 25*3mm. Available in multiple angles options, allows complex and flexible frames and structures with accurate alignment, ensuring strong, stable structures for concerts, exhibitions, and event installations.
SPECIFICATIONS
| Length (L) | 0.5m (1.64ft) |
| Angle (A) | 2-way 45°corner horizontal |
| Weight (W) | 3.8kgs(8.38lbs) |

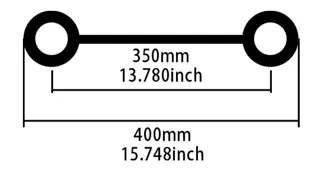

F42 STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | 14m | 16m | |||
| Distrib.Load(kg/m) | 756 | 243 | 109 | 61 | 39 | 27 | 19 | 14 | |||
| Deflection(mm) | 1.2 | 6.4 | 14.7 | 26.7 | 42.7 | 63 | 87.8 | 115.3 | |||
| Point Load(kg) | 756 | 486 | 327 | 245 | 195 | 161 | 135 | 113 | |||
| Deflection(mm) | 1 | 5.1 | 11.8 | 21.6 | 34.8 | 51.8 | 72.9 | 96.7 | |||
Advantages of F42 Series Ladder Truss Corner
1. Precision Engineering – Ensures accurate alignment for secure connections and strong joints.
2. Robust Construction – Made from EN AW-6082 T6 aluminum for durability and reliability.
3. Multiple Angle Options – Provides flexibility for complex structures and custom designs.
4. Fast Assembly – Spigot system allows quick, hassle-free installation on site.
5. Professional Appearance – Offers a clean, robust look suitable for high-end events.
