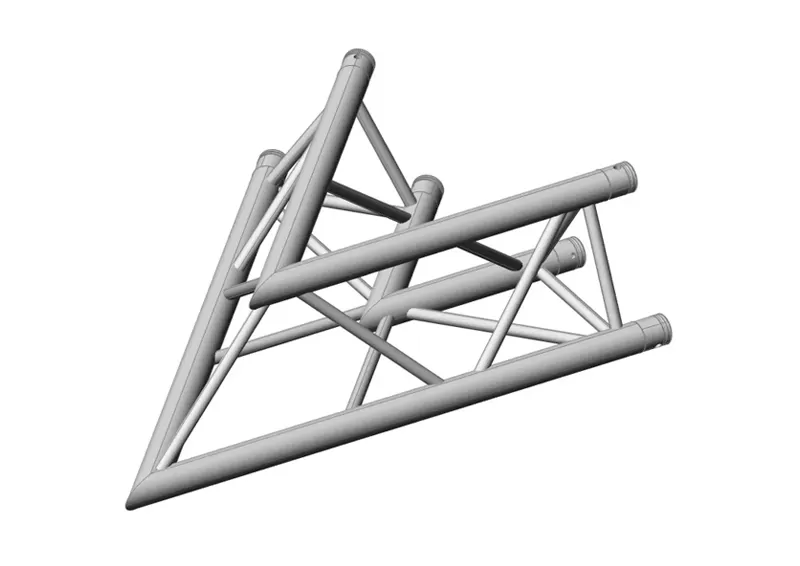

The F33 Triangle Truss Corner is crafted from EN AW-6082 T6 aluminum alloy, ensuring strength and lightweight performance. Featuring a 290mm specification profile and spigot connection, main tube dimension in 50*2mm and brace in 20*2mm. Designed for precise 3-way or 4-way connections, it guarantees stability and seamless integration. Ideal for stages, exhibitions, and event structures, it enables versatile configurations, quick assembly, and reliable load-bearing for professional installations.

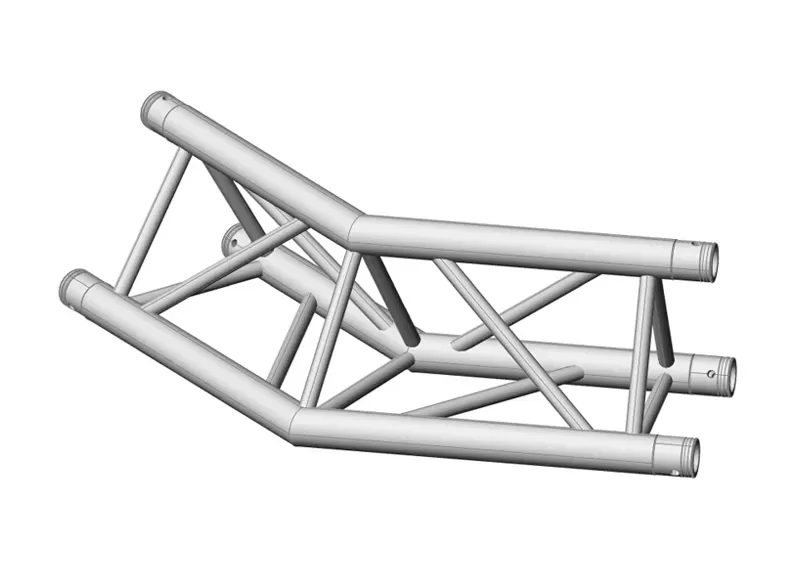

The HT33 Triangle Truss Corner is precision-engineered from EN AW‑6082 T6 aluminum, matching the heavy-duty 290 mm equilateral HT33 truss. Available in angles from 45° to 135° with integrated quick-lock kits, it ensures rigid, modular jointing. Ideal for stage roofs, exhibition frames, and event rigging, it offers seamless alignment, rapid assembly, TÜV-certified safety, and dependable load-bearing performance.
SPECIFICATIONS
| Length (L) | 1m (3.28ft) |
| Angle (A) | 2-way 45° corner |
| Weight (W) | 5.2kgs (11.46lbs) |

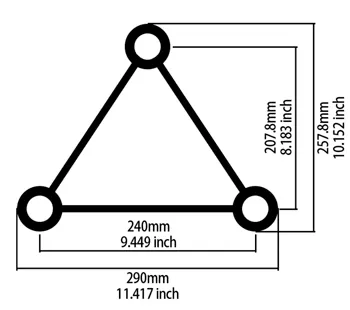

F33 TRIANGLE STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | |||
| Distrib.Load(kg/m) | 761 | 206 | 92 | 51 | 31 | 20 | |||
| Deflection(mm) | 2.6 | 11.5 | 26.8 | 48.8 | 75.2 | 105.6 | |||
| Point Load(kg) | 761 | 412 | 277 | 206 | 154 | 117 | |||
| Deflection(mm) | 2.1 | 9.3 | 21.7 | 39.8 | 62 | 88.3 | |||
Here are the key advantages of the ''F33 Triangle Truss Corner'':
1. Strong Construction – Made from EN AW-6082 T6 aluminum for durability and high strength.
2. Precision Alignment – Ensures accurate angles and seamless connection between truss segments.
3. Modular Design – Compatible with standard F33 components for flexible configurations.
4. Lightweight & Portable – Easy to handle and transport while maintaining structural integrity.
5. Quick Installation – Spigot connection system allows fast, tool-free assembly.
6. Enhanced Stability – Provides secure corner support for complex structures.
7. Versatile Application – Suitable for stage roofs, exhibition stands, and event setups requiring angled connections.
Do you want me to combine both (truss and corner) advantages into a single professional summary for your product catalog?
