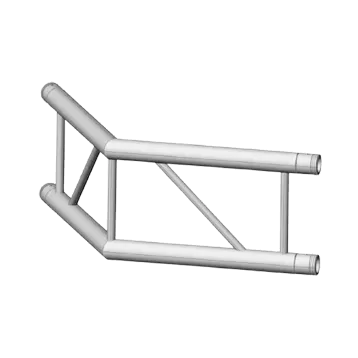

The F32 series ladder truss is made of high-quality EN AW-6082 T6 aluminum alloy, which for strength and durability. Featuring a 290mm specification profile and spigot connection, main tube dimension in 50*2mm and brace in 20*2mm. Available in multiple angles structure, allows flexible structure designs for stages, display frames, and event setups, ensuring a stable, safe and professional project finish.
SPECIFICATIONS
| Length (L) | 1m (3.28ft) |
| Angle (A) | 2-way 45°corner horizontal |
| Weight (W) | 3kgs(6.61lbs) |
F32 STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | |||
| Distrib.Load(kg/m) | 673 | 166 | 76 | 43 | 27 | 18 | |||
| Deflection(mm) | 2.3 | 9.3 | 21.9 | 39.8 | 63.7 | 94 | |||
| Point Load(kg) | 673 | 333 | 228 | 170 | 135 | 110 | |||
| Deflection(mm) | 1.9 | 7.4 | 17.6 | 32.3 | 52.5 | 77.7 | |||
Advantages of F32 Series Ladder Truss Corner
1. Accurate Alignment – Ensures precise joint connection for structural integrity.
2. Robust Construction – Built from EN AW-6082 T6 aluminum for durability.
3. Multiple Angle Options – Offers design flexibility for creative structures.
4. Quick Assembly – Spigot system allows fast, hassle-free setup.
5. Professional Finish – Provides a clean and reliable look for event installations.
