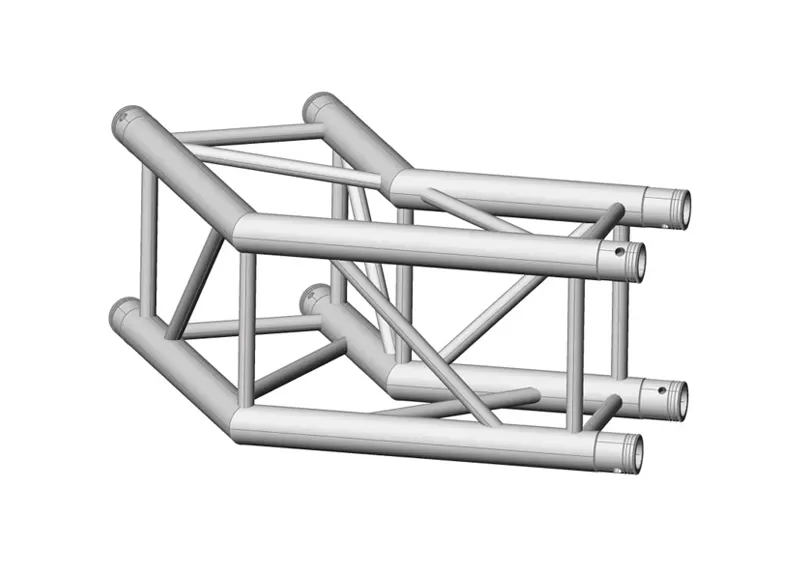

The F24-C22 2-way 120° corner Corner is a lightweight aluminum alloy truss component designed for the F24 system. Constructed from EN AW‑6082 T6 aluminum, it features 35 mm main tubes with a 1.6 mm wall thickness and 8 mm diagonal braces. With an external dimension of 22 cm, it supports spans up to 10 meters. Ideal for exhibitions, retail displays, and event structures, it offers quick assembly and modular flexibility.
SPECIFICATIONS
| Length (L) | 0.5m (1.64ft) |
| Angle (A) | 2-way 120° corner |
| Weight (W) | 5.1kgs(5.29lbs) |
F24 STRAIGHT SEGMENT
F24 STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | |||
| Distrib.Load(kg/m) | 202 | 134 | 100 | 65 | 35 | 21 | |||
| Deflection(mm) | 0.9 | 2.9 | 6.9 | 23.1 | 41.3 | 64.8 | |||
| Point Load(kg) | 405 | 354 | 286 | 195 | 141 | 107 | |||
| Deflection(mm) | 1.4 | 4.1 | 7.9 | 18.7 | 33.7 | 53.6 | |||
1. Durable Construction: Made from EN AW‑6082 T6 aluminum alloy for enhanced strength and corrosion resistance.
2. High Load Capacity: Supports spans up to 10 meters, suitable for various applications.
3. Quick Assembly: Features a conical connector system for fast, tool-free setup.
4. Modular Flexibility: Compatible with other F24 components for customizable configurations.
5. Compact Design: 22 cm external dimension ensures compatibility with space-constrained environments.
6. Versatile Applications: Ideal for exhibitions, retail displays, and event structures.
7. Certified Safety: Tested and certified to meet international safety standards.
