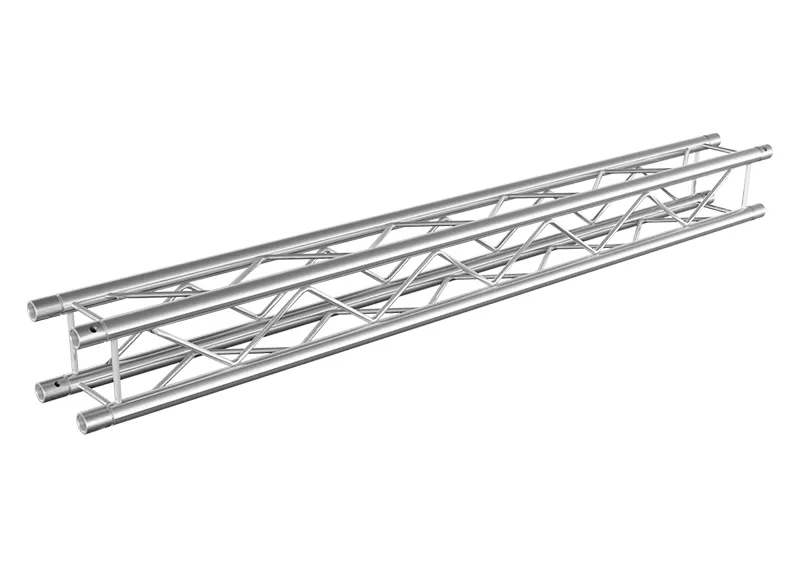

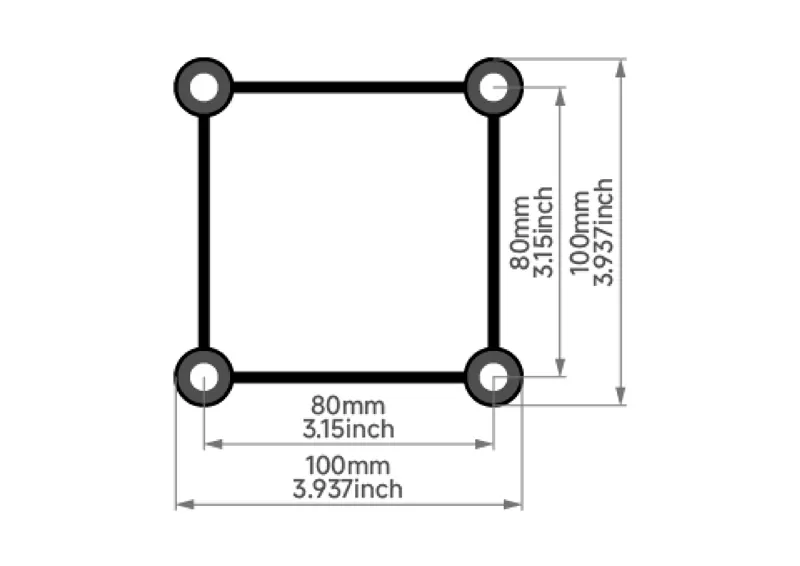

The F14 Square Truss is constructed from high-strength EN AW-6082 T6 aluminum, featuring 20 mm main tubes and 6 mm diagonal braces. With an external dimension of 100 mm, it offers a lightweight yet robust solution for spans up to 7 meters. Ideal for exhibitions, retail displays, and event structures, it ensures quick assembly, modular flexibility, and reliable performance.
SPECIFICATIONS
| Main tube | 20x2mm(0.787x0.08 inch) |
| Braces | 6mm(0.236 inch) |
| Alloy | EN-AW 6082-T6 |
F14 STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | |||
| Distrib.Load(kg/m) | 220 | 61 | 29 | 14 | 9 | |||
| Deflection(mm) | 12.1 | 41.5 | 91.7 | 155.7 | 261.1 | |||
| Point Load(kg) | 147 | 93 | 69 | 52 | 44 | |||
| Deflection(mm) | 6.4 | 25.4 | 60.5 | 118.5 | 196.5 | |||
Advantages of F14 Square Truss
1. Premium Material – Crafted from EN AW-6082 T6 aluminum for durability and corrosion resistance.
2. Lightweight Design – Weighs approximately 5 lbs (2.3 kg) per meter, facilitating easy handling and transportation.
3. Modular Flexibility – Compatible with various lengths and accessories for customizable configurations.
4. Tool-Free Assembly – Utilizes a conical connector system for quick and secure connections.
5. Compact Footprint – External dimension of 100 mm suits spaces with limited clearance.
6. TÜV Certified – Complies with international safety standards for peace of mind.
7. Versatile Applications – Suitable for exhibitions, retail displays, and event structures.
