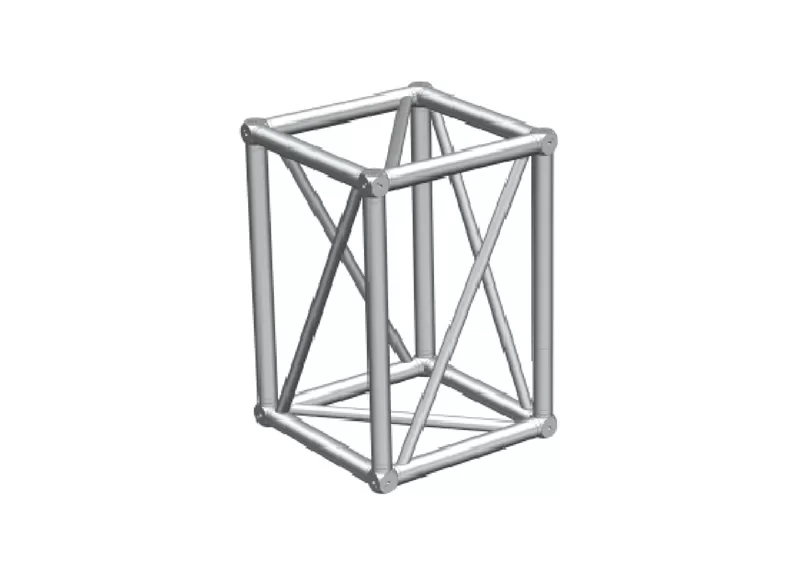

Crafted from EN AW‑6082 T6 aluminum, the **TT74‑MCB** supports up to six spigot connections within a compact 520 × 760 mm cube, weighing around 19.9kgs(43.77lb). Perfect for large-scale stage grids, exhibition roofs, and touring systems, it offers rapid tool-free assembly, structural efficiency, and simplifies inventory by replacing multiple corner types.
The TT74‑MCB offers exceptional flexibility in heavy-duty truss configurations. Its universal junction ability makes structural designs cleaner, faster to deploy, and easier to manage-especially in touring and large-scale productions. Functionally robust yet compact, it is an indispensable component for advanced staging and rigging setups.
SPECIFICATIONS
| Angle (A) | Multi Connection Box |
| Weight (W) | 19.9kgs(43.77lb) |

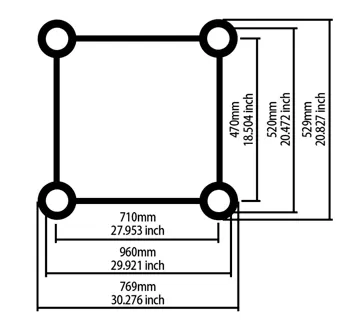

TT74 STRAIGHT SEGMENT
| Span(m) | 6m | 8m | 10m | 12m | 14m | 16m | 18m | 20m | |||
| Distrib.Load(kg/m) | 713 | 530 | 394 | 270 | 195 | 146 | 112 | 88 | |||
| Deflection(mm) | 7.3 | 17.3 | 31.7 | 46.1 | 64.4 | 83.9 | 106.6 | 132.6 | |||
| Point Load(kg) | 3116 | 2478 | 1968 | 1620 | 1365 | 1168 | 1009 | 877 | |||
| Deflection(mm) | 8.8 | 16.7 | 26.4 | 38.5 | 52.8 | 69.6 | 88.8 | 110.5 | |||
1. Multi‑Way Connectivity – Allows six-way junctions in a single block, reducing the need for multiple corners.
2. Heavy-Duty Design – Made from durable EN AW‑6082 T6 aluminum for strong, long-lasting performance.
3. Efficient Assembly – Compatible with the TT74 quicklock system for fast, secure, tool-free builds.
4. Space-Smart – The 520 mm cube form delivers high connection density with minimal bulk.
5. Great Load Management – Designed to handle high load capacity truss configurations.
6. Simplifies Kit Inventory – Replaces multiple corner types, streamlining storage and logistics.
