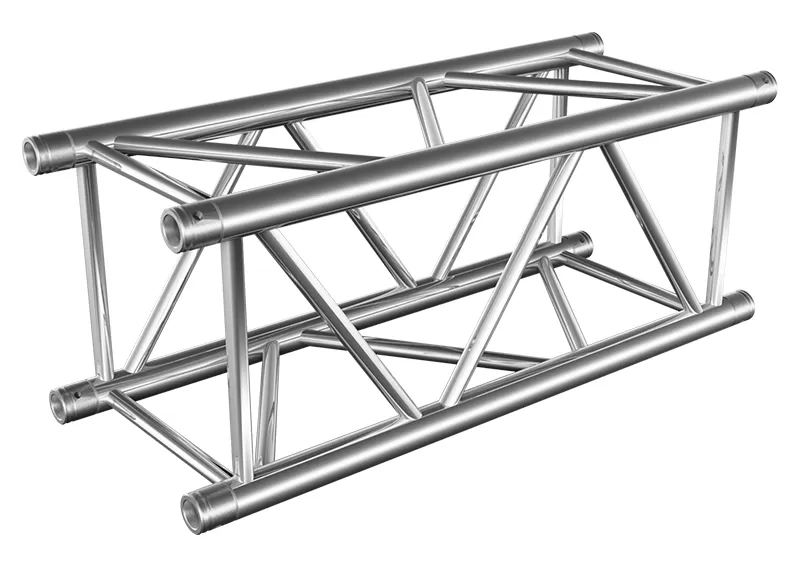

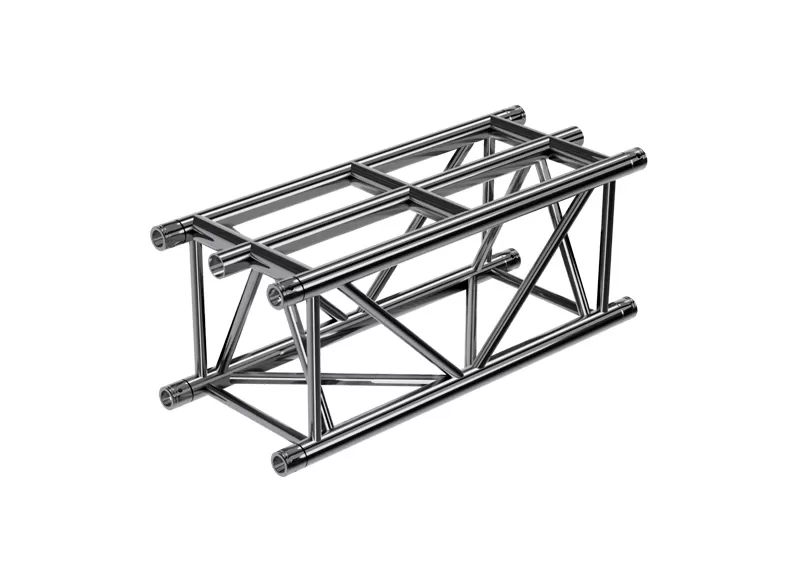

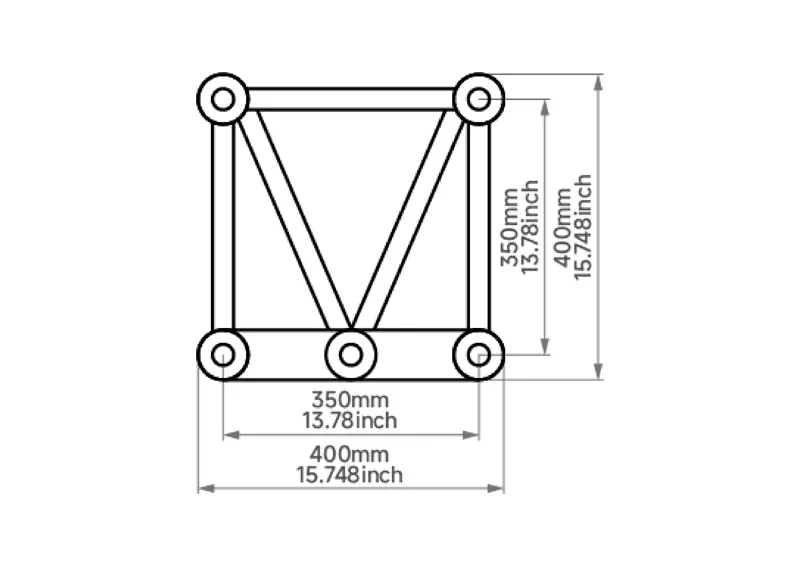

The TS44 Square Truss is a robust aluminum truss system designed for medium-duty applications. Constructed from high-strength EN AW-6082 T6 aluminum, it features 50 × 3 mm main tubes and 25 × 3 mm braces, 5 main tubes. With an external dimension of 400 x 400 mm, it is ideal for stage rigging, exhibition setups, and event infrastructure. The modular design allows for flexible configurations, and the truss is compatible with various connection systems for easy assembly.
The TS44 Square Truss is engineered to meet the demands of professional event setups. Its robust design and compatibility with various configurations make it a reliable choice for creating stable and secure structures. Whether you're constructing a temporary stage or a complex exhibition structure, the TS44 provides the flexibility and strength needed for successful installations.
SPECIFICATIONS
| Length (L) | 1m |
| Section Type | SQUARE |
| Weight (W) | 11.30kg |

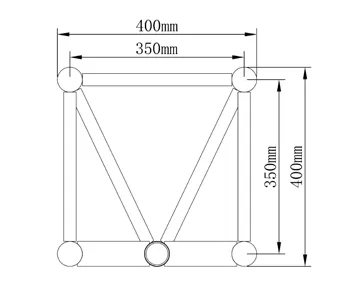

TS44 SINGLE PIPE SEGMENT
| Span(m) | 6m | 8m | 10m | 12m | 14m | 16m |
| Distrib.Load(kg/m) | 417 | 243 | 162 | 112 | 82 | 61 |
| Deflection(mm) | 18.9 | 35.4 | 58.8 | 86.5 | 119.8 | 158.7 |
| Point Load(kg) | 1252 | 971 | 811 | 675 | 573 | 477 |
| Deflection(mm) | 15.2 | 28.5 | 47.6 | 70.5 | 98.3 | 127.8 |
1. Durable Construction – Made from high-strength EN AW-6082 T6 aluminum, ensuring longevity and resistance to wear.
2. Modular Design – Compatible with various lengths and configurations for versatile setups.
3. Easy Assembly – Features a spigot connection system for fast and secure setup.
4. High Load Capacity – Suitable for supporting heavy equipment and structures.
5. Versatile Applications – Ideal for stages, exhibitions, and event infrastructure.
6. Indoor & Outdoor Use – Designed to withstand various environmental conditions.
