The TS34 Square Truss is a robust aluminum truss system designed for medium-duty applications. Constructed from high-strength EN AW-6082 T6 aluminum, it features 50 × 3 mm main tubes and 20 × 2 mm braces, 5 main tubes. With an external dimension of 290 x 290 mm, it is ideal for stage rigging, exhibition setups, and event infrastructure. The modular design allows for flexible configurations, and the truss is compatible with various connection systems for easy assembly.
The TS34 Square Truss is engineered to meet the demands of professional event setups. Its robust design and compatibility with various configurations make it a reliable choice for creating stable and secure structures. Whether you're constructing a temporary stage or a complex exhibition structure, the TS34 provides the flexibility and strength needed for successful installations.
SPECIFICATIONS
| Main Tube | 50×3mm |
| Brace | 20×2mm |
| Aluminum Alloy | EN AW-6082 T6 |

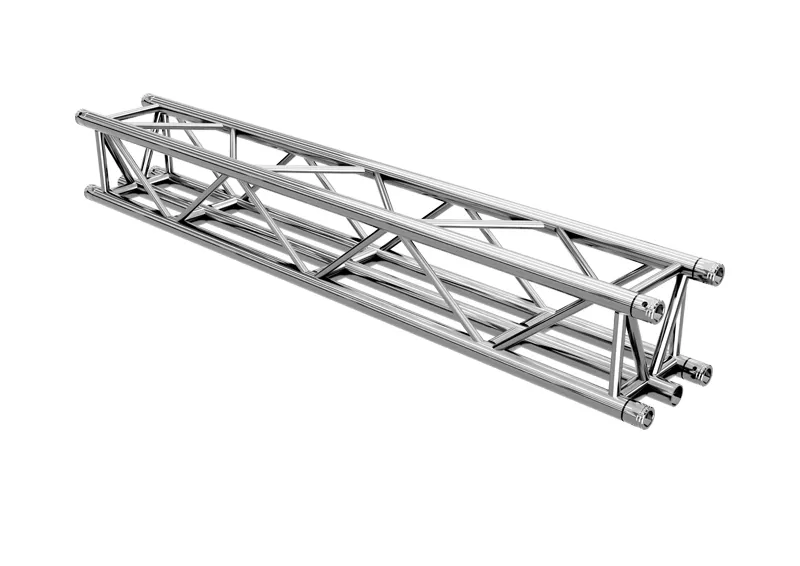

TS34 SINGLE PIPE SEGMENT
| Length(m) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | ||||
| Weight(kgs) | 6.24 | 9.05 | 12.18 | 15.08 | 17.98 | 21.46 | 24.24 | 27 | 28.5 | 32.43 | ||||
| Spec(mm) | 290×290 | |||||||||||||
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | ||||||||
| Distrib.Load(kg/m) | 1420 | 707 | 344 | 193 | 121 | 82 | ||||||||
| Deflection(mm) | 1.7 | 13.3 | 33.2 | 59.8 | 93.9 | 134.8 | ||||||||
| Point Load(kg) | 2840 | 1544 | 1033 | 771 | 607 | 491 | ||||||||
| Deflection(mm) | 2.7 | 11.7 | 26.7 | 48.3 | 76.2 | 110.1 | ||||||||
1. Durable Construction – Made from high-strength EN AW-6082 T6 aluminum, ensuring longevity and resistance to wear.
2. Easy hanging of large LED screens – The unsurpassed versatility of our Middle Tube is the key.
3. Easy Assembly – Features a spigot connection system for fast and secure setup.
4. High Load Capacity – Suitable for supporting heavy equipment and structures.
5. Versatile Applications – Ideal for stages, exhibitions, and event infrastructure.
6. Indoor & Outdoor Use – Designed to withstand various environmental conditions.
