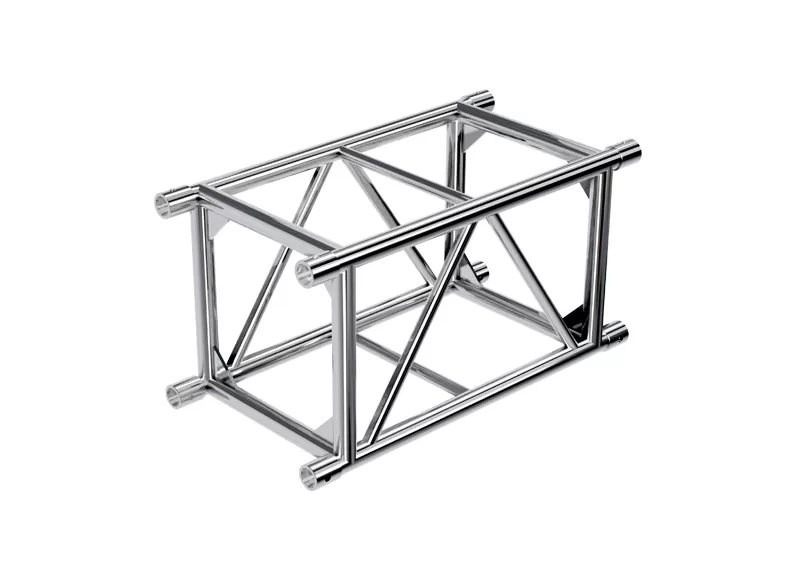

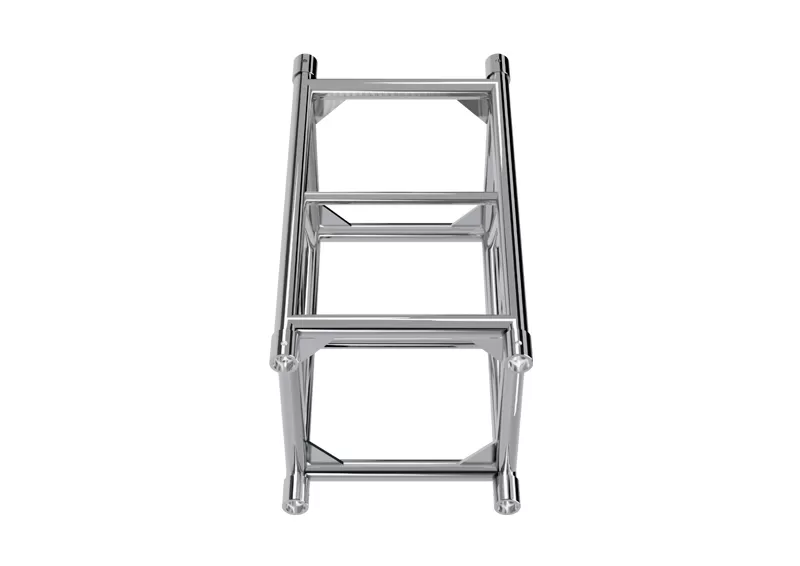

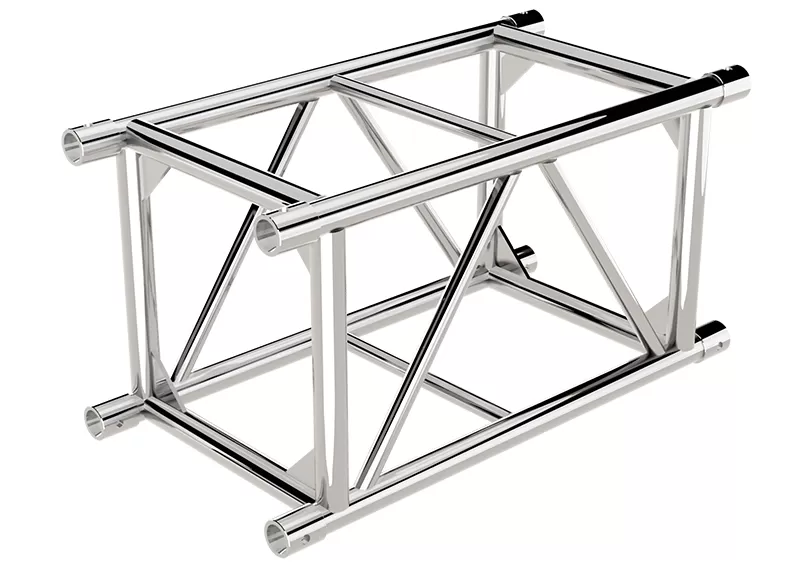

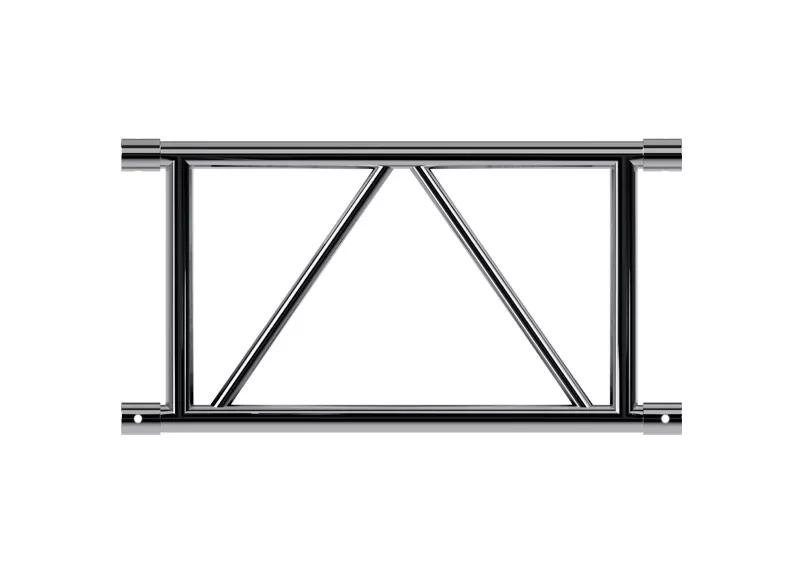

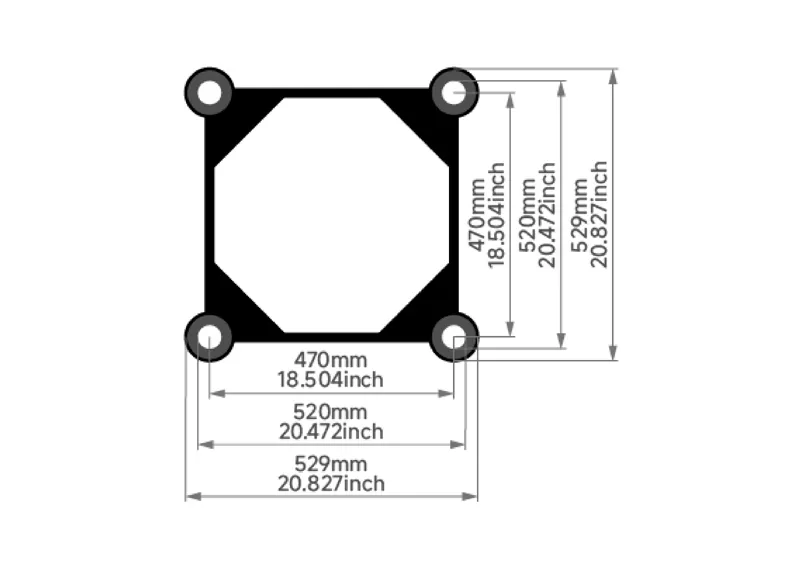

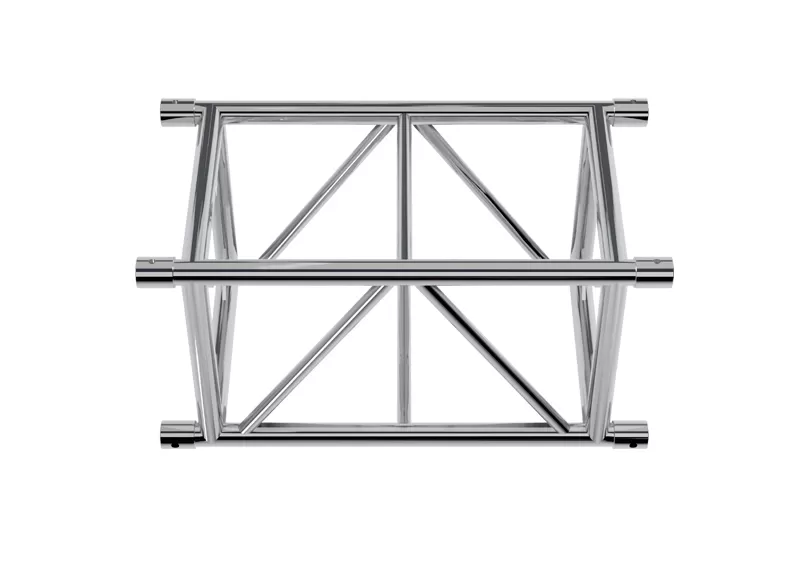

The TT54 is a heavy-duty square truss system designed for large-scale applications. Constructed from high-strength EN AW-6082 T6 aluminum, it features 50×4 mm main tubes and 30×3 mm braces. With an external dimension of 520×520 mm, it supports spans up to 22 meters and is suitable for both indoor and outdoor installations. The truss utilizes a Quicklock connection system for fast assembly and is compatible with various clamps and accessories. Its robust design makes it ideal for roof systems, grid networks, and other heavy-duty structures.
The TT54 truss system is engineered to meet the demands of professional event setups. Its robust design and compatibility with various configurations make it a reliable choice for creating stable and secure structures. Whether you're constructing a temporary stage, a complex exhibition structure, or a large-scale roof system, the TT54 provides the flexibility and strength needed for successful installations.
SPECIFICATIONS
| Main tube | 50x4mm(2x0.16 inch) |
| Vice tube | 50x4mm(2x0.16 inch) |
| Braces | 30x3mm(1.2x0.12 inch) |
| Alloy | EN-AW 6082-T6 |
TT54 STRAIGHT SEGMENT
| Span(m) | 6m | 8m | 10m | 12m | 14m | 16m | 18m | 20m | |||
| Distrib.Load(kg/m) | 729 | 409 | 259 | 177 | 128 | 93 | 69 | 52 | |||
| Deflection(mm) | 16.9 | 30.3 | 47.9 | 69.8 | 95.9 | 123.3 | 153.5 | 186.6 | |||
| Point Load(kg) | 2188 | 1635 | 1296 | 1065 | 895 | 741 | 618 | 517 | |||
| Deflection(mm) | 14.1 | 25.3 | 40 | 58.1 | 79.9 | 102.7 | 128 | 155.5 | |||
1. High Load Capacity – Supports spans up to 22 meters, accommodating heavy loads.
2. Durable Construction – Made from EN AW-6082 T6 aluminum for strength and longevity.
3. Quick Assembly – Features a Quicklock connection system for efficient setup.
4. Versatile Applications – Suitable for both indoor and outdoor installations.
5. Modular Design – Compatible with various clamps and accessories for flexible configurations.
6. TÜV Certified – Ensures compliance with safety standards.
