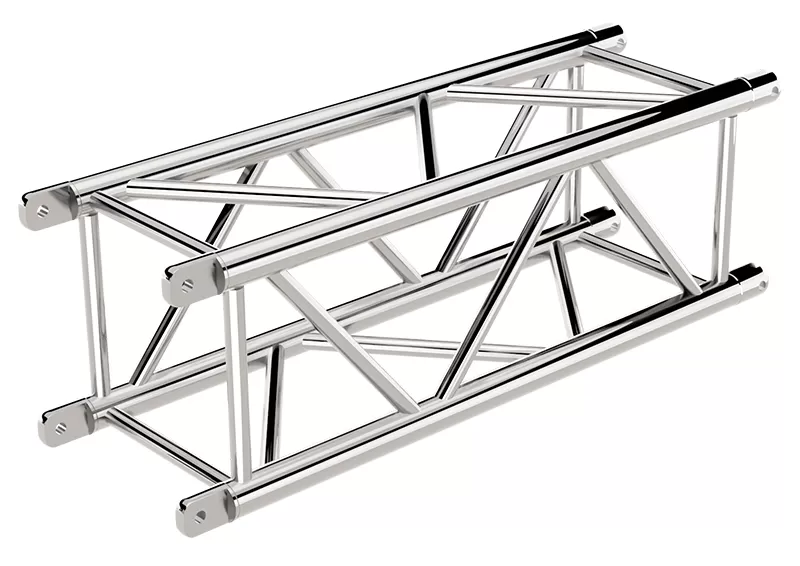

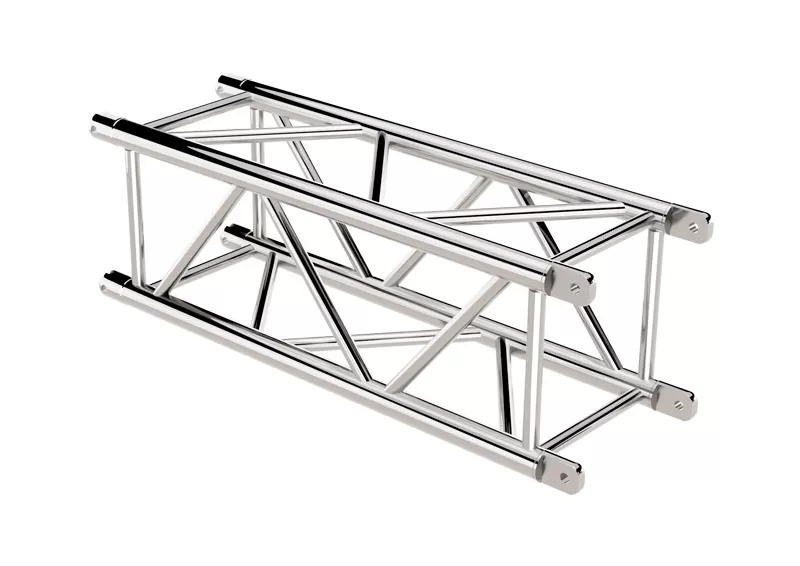

Crafted from EN AW‑6082 T6 aluminum, the GS350 series is a light-duty square fork truss with a 350 × 350 mm profile, 50 ×3 mm tubes, and 25 × 3 mm braces. Designed for indoor/outdoor event use—like flying grids and touring systems—it ensures strong, quick fork connections, fast installation, and aesthetic versatility in modular setups.
The GS350 Series Fork Truss blends compact design with impressive load capacity. Its fork-style connections make it especially effective for aerial grid systems where strength and speed matter. Light yet robust, GS350 is a professional event truss solution offering swift setup, reliability, and aesthetic refinement.
SPECIFICATIONS
| Main tube | 48x4.5mm(1.89x0.18 inch) |
| Braces | 25x3mm(1x0.12 inch) |
| Alloy | EN-AW 6082-T6 |

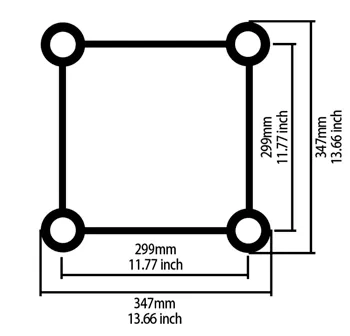

GS350 STRAIGHT SEGMENT
| Span(m) | 4m | 6m | 8m | 10m | 12m | 14m | 16m | |||
| Distrib.Load(kg/m) | 995 | 436 | 240 | 150 | 100 | 71 | 52 | |||
| Deflection(mm) | 9.2 | 20.7 | 36.8 | 57.7 | 83.8 | 113.9 | 149.4 | |||
| Point Load(kg) | 1991 | 1308 | 961 | 748 | 603 | 495 | 412 | |||
| Deflection(mm) | 8.4 | 18.9 | 33.7 | 52.9 | 76.5 | 104.8 | 137.8 | |||
Elegant Design & Strong Fork Connection: Features male–female fork ends joined with steel pins and safety clips.
Compact Yet Powerful: Despite its small size, it delivers high load capacities—up to 995 kg/m distributed and 1991 kg point load on short spans.
Fast Assembly: Straight-forward fork system enables tool-free and efficient setup.
Lightweight & Mobile: Available in various lengths (up to 4.27 m), it remains lightweight for easy transport and handling.
Flexible Finishing Options: Powder coating available in requested colors for branding or aesthetic requirements.
Versatile Applications: Ideal for touring, exhibition grids, stage flying, and modular event structures.
