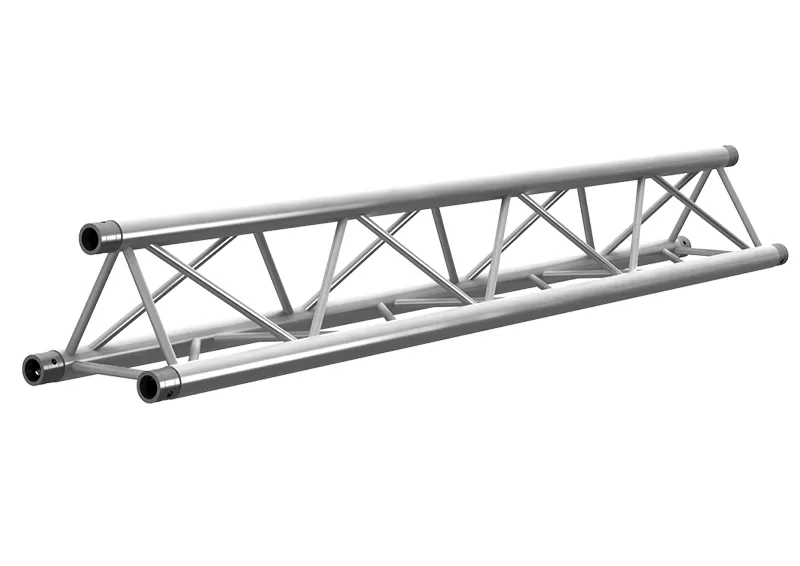

The DT33 truss system is constructed from high-strength EN AW-6082 T6 aluminum, featuring 50x2 mm main tube and 16x2 mm brace. Its 290 mm external dimension makes it ideal for a wide range of applications, including stage rigging, exhibition setups, and event infrastructure. The quick-connect conical coupling system ensures rapid assembly and disassembly, enhancing efficiency for frequent setups. TÜV-certified for safety and compatibility with other major truss systems, it offers versatility and reliability for both indoor and outdoor use.
The DT33 truss system's robust design and modularity make it a preferred choice for professionals in the entertainment and event industries. Its ability to integrate with other truss systems and its compliance with safety standards provide peace of mind for users. Whether constructing a temporary stage or a complex exhibition structure, the DT33 offers the reliability and flexibility needed for successful installations.
SPECIFICATIONS
| Length (L) | 1m |
| Section Type | TRIANGLE |
| Weight (W) | 4.3kg |

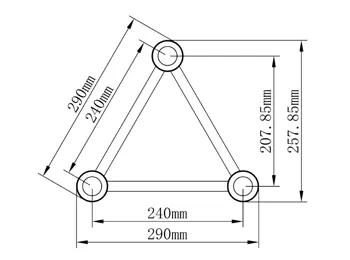

PT33 SINGLE PIPE SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m |
| Distrib.Load(kg/m) | 680 | 206 | 97 | 54 | 33 | 20 |
| Deflection(mm) | 2.3 | 11.5 | 28.1 | 51 | 78.3 | 107.2 |
| Point Load(kg) | 761 | 413 | 292 | 217 | 163 | 133 |
| Deflection(mm) | 2.1 | 9.3 | 22.7 | 41.5 | 64.3 | 96 |
1. High Load Capacity – Designed to support substantial weights, ensuring stability for heavy equipment.
2. Lightweight Construction – The aluminum design reduces overall weight, facilitating easier handling and transport.
3. Quick Assembly – Conical connectors with steel pins and safety clips allow for fast and secure setup.
4. Versatile Applications – Suitable for various setups, including stages, exhibitions, and events.
5. TÜV Certification – Ensures compliance with safety standards and compatibility with other systems.
6. European Manufacturing – Produced in Europe, adhering to high-quality manufacturing standards.
