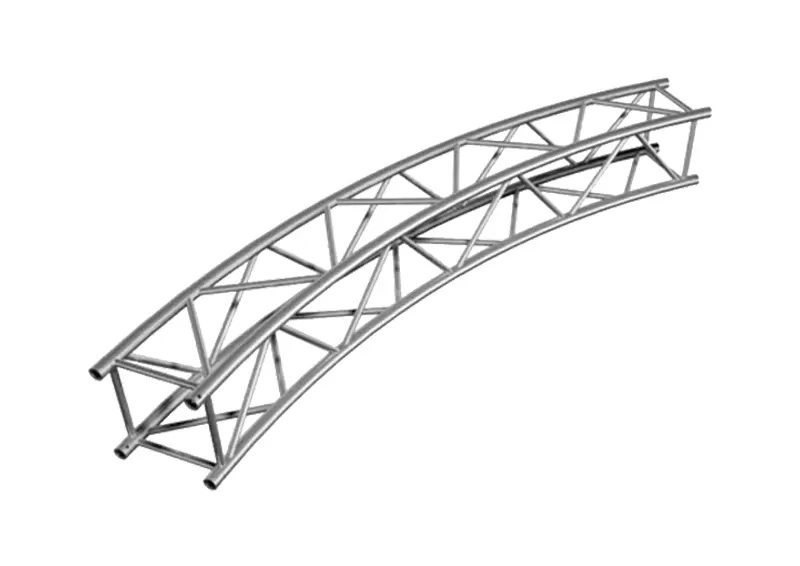

Crafted from EN AW-6082 T6 aluminum, the HT44 circular segment features 50 × 3 mm main tubes and 25 × 3 mm braces. Certified by TÜV SÜD, it supports spans up to 16 m and is ideal for large-scale applications like roof systems, exhibition grids, and complex stage setups.
The HT44 Square Truss Circular Segment is engineered for demanding applications requiring robust structural support. Its compatibility with the Quicklock connection system facilitates rapid assembly, making it an excellent choice for professionals seeking efficiency without compromising on safety or performance.
SPECIFICATIONS
| Length (L) | Circle |
| Angle (A) | Various diameters |
HT44 BOX STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | 12m | 14m | 16m | |||
| Distrib.Load(kg/m) | 2327 | 901 | 417 | 243 | 162 | 112 | 82 | 61 | |||
| Deflection(mm) | 1.3 | 8 | 18.9 | 35.4 | 58.8 | 86.5 | 119.8 | 158.7 | |||
| Point Load(kg) | 3267 | 1803 | 1252 | 971 | 811 | 675 | 573 | 477 | |||
| Deflection(mm) | 1.4 | 6.4 | 15.2 | 28.5 | 47.6 | 70.5 | 98.3 | 127.8 | |||
1. Heavy-Duty Construction – 50 × 3 mm main tubes and 25 × 3 mm braces ensure exceptional strength and durability.
2. Certified Load Capacity – TÜV SÜD certified, supporting spans up to 16 m.
3. Versatile Applications – Suitable for roof systems, exhibition grids, and complex stage setups.
4. Quick Assembly – Compatible with Quicklock connection system for efficient setup.
5. Interior & Exterior Use – Designed for both indoor and outdoor installations.
6. Customizable Finish – Powder coating available upon request for aesthetic flexibility.
