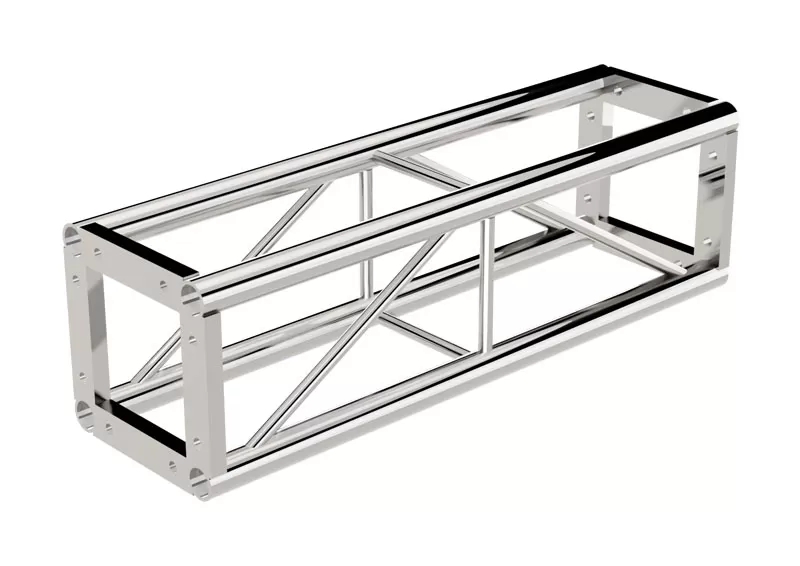

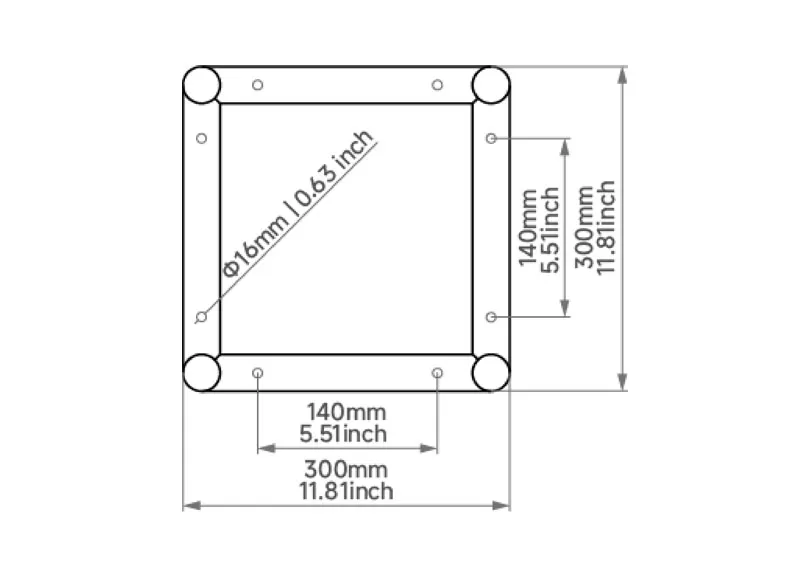

FTI34 series square bolted truss is manufactured from high-strength EN AW-6082 T6 aluminum alloy, ensuring durability and stability. Specification of 300mm*300mm, available in various length and connection options, it offers excellent loading capacity for large spans. Good choice for stages, exhibitions, and event structures, its modular design allows easy assembly, straight but stable when connecting in long spans, and reliable performance for various scenes applications.
| Main tube | 50x3mm |
| Vice tube | 20x2mm |
| Braces | 20x2mm |
| Alloy | EN-AW 6082-T6 |

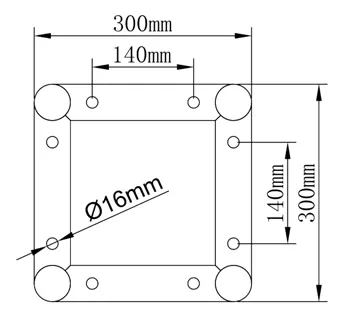

FTI34 STRAIGHT SEGMENT
| Span(m) | 4m | 6m | 8m | 10m | 12m | ||||
| Distrib.Load(kg/m) | 250 | 110 | 62 | 42 | 29 | ||||
| Deflection(mm) | 9 | 20 | 32 | 45 | 58 | ||||
| Point Load(kg) | 485 | 326 | 250 | 210 | 175 | ||||
| Deflection(mm) | 6 | 17 | 29 | 35 | 42 | ||||
Advantages of the FTI34 Series Bolted Truss:
1. High Strength Material – Made from EN AW-6082 T6 aluminum for superior durability and corrosion resistance.
2. Standard 290mm Size – Compatible with industry-standard systems for easy integration.
3. Excellent Load Capacity – Designed for medium-duty applications with reliable structural stability.
4. Bolted Connection System – Ensures precise alignment, secure assembly, and easy maintenance.
5. Modular and Versatile Design – Suitable for stages, lighting rigs, exhibition booths, and small roof systems.
6. Cost-Effective Transport and Storage – Detachable components reduce space and handling costs.
7. Professional Finish – Clean design ideal for both indoor and outdoor event setups.
