The F14-MCB Multi-Corner Block is a versatile junction component designed for the F14 truss system. Crafted from high-strength aluminum alloy, it facilitates seamless connections between multiple truss segments, enabling the creation of complex structures. Ideal for exhibitions, trade shows, and event setups, it ensures quick assembly and robust performance.

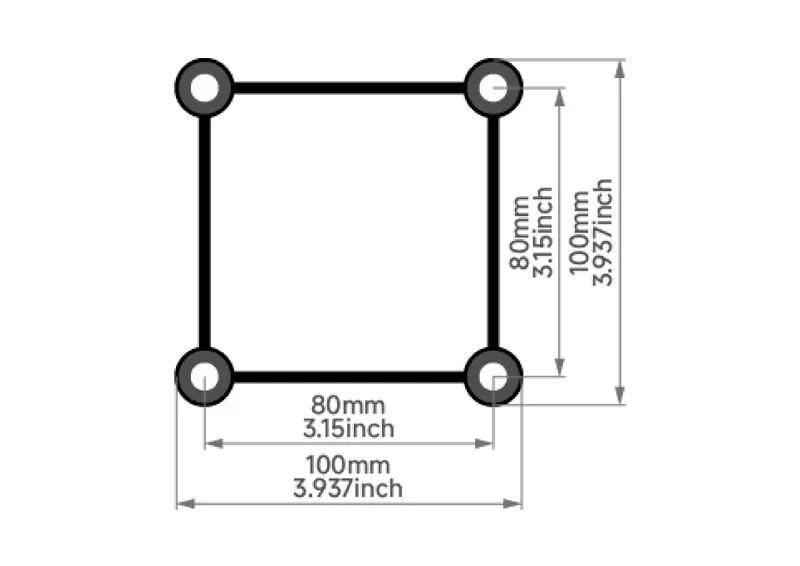

SPECIFICATIONS
| Length(L) | 0.1m (0.33ft) |
| Angle (A) | Universal junction box |
| Weight (W) | 2.8kgs (6.17lbs) |
F14 STRAIGHT SEGMENT
| Span(m) | 2m | 4m | 6m | 8m | 10m | |||
| Distrib.Load(kg/m) | 220 | 61 | 29 | 14 | 9 | |||
| Deflection(mm) | 12.1 | 41.5 | 91.7 | 155.7 | 261.1 | |||
| Point Load(kg) | 147 | 93 | 69 | 52 | 44 | |||
| Deflection(mm) | 6.4 | 25.4 | 60.5 | 118.5 | 196.5 | |||
1. Durable Construction: Made from high-strength aluminum alloy, ensuring longevity and resistance to wear.
2. Versatile Connectivity: Supports multiple connection points, allowing for flexible and complex truss configurations.
3. Quick Assembly: Designed for fast and efficient setup, reducing labor time during installations.
4. Lightweight Design: Facilitates easy handling and transportation, making it suitable for mobile events.
5. Compact Size: Its compact dimensions make it ideal for installations in spaces with limited room.
6. Certified Safety: Tested and certified to meet international safety standards, ensuring reliable performance.
