WTC tower 2 engineered using super heavy-duty 400 × 400 mm TT44 square truss series (made of EN AW-6082 T6 aluminum alloy; 50 × 4 mm main tubes, 25 × 3 mm braces), this vertical tower loading capacity up to 2,000 kg, so that is ideal for rigging speaker arrays, lighting grids, or LED screens. With a robust steel base plate(TGBP), long outriggers(TGLO), sleeve block(TGSB), top section(TGTS) and hinge section quick-lock assembly, it ensures secure and efficient setup.
The tower 2 can meet the need of heavy loading support in demanding events and projects applications. Its modular design and strength make it a quick reaction solution for events design and setup where rapid deployment and safety are critical need.
SPECIFICATIONS
| Self weight | 315kgs |
| Height | 12m |
| Load capacity | 2000kgs |
Mast section TT44
| Main tubes | 50x4mm |
| Barces | 25x3mm |
| Alloy | EN-AW 6082 T6 |
Tower 2 is a heavy duty tower from quick-lock line segments that can go up to 12m and its loading capacity is 2000kgs. Thanks to its characteristics, this versatile lectern truss performs very well in large scale structures with high loads and longer spans.
Part List

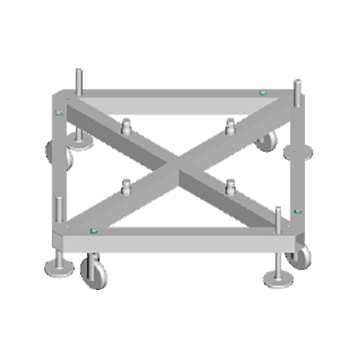

| TG BP | 1PCS |

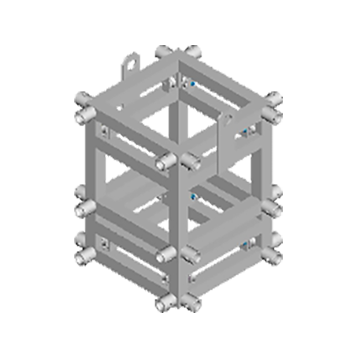

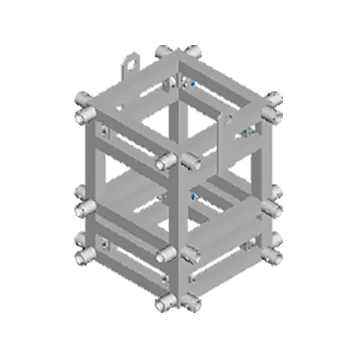

| TG SB | 1PCS |
| ST5029-H | 4PCS |

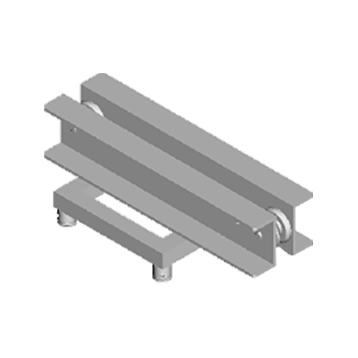

| TG TS | 1PCS |

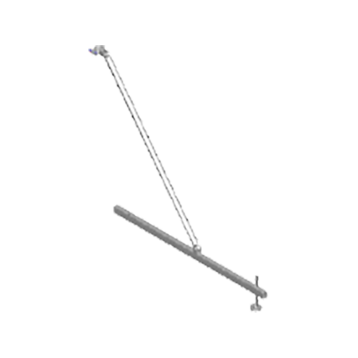

| TG LO | 4PCS |
| TT44-1000 | 1PCS |
| TT44-2000 | 4PCS |
| TT44-3000 | 1PCS |
1. Excellent Load Capacity – Capable of lifting up to 2,000kg safely.
2. High Vertical Reach – Supports heights up to 12m in good efficiency.
3. Stability Guarantee – Integrated outriggers and steel base plate enhance structural safety.
4. Quick-Lock System Design – Allows rapid, tool-less assembly and disassembly using standard TT44 truss series segments.
5. Multipurpose Use – Ideal for concerts, music festival, touring stages, line-array speakers, exhibition roofs, and LED screen installations.
6. Durable & Safe – Long-lasting aluminum alloy used and certified components ensure safety, stability, long-term reliability for indoor and outdoor scene application.
