The Assembling Stage is a modular, portable platform system designed for quick setup and takedown. Constructed from high-strength aluminum alloys such as EN AW-6082 T6, it offers a lightweight yet durable solution for various events. The stage typically features dimensions like 10m x 8m x 7m and is supported by a four-pillar truss system, enhancing the reliability of this assembly stage. Its modular design allows for flexible configurations, making it ideal for concerts, festivals, exhibitions, and other large-scale events—solidifying the assembly stage as a versatile choice for diverse scenarios.
Assembling stage specification

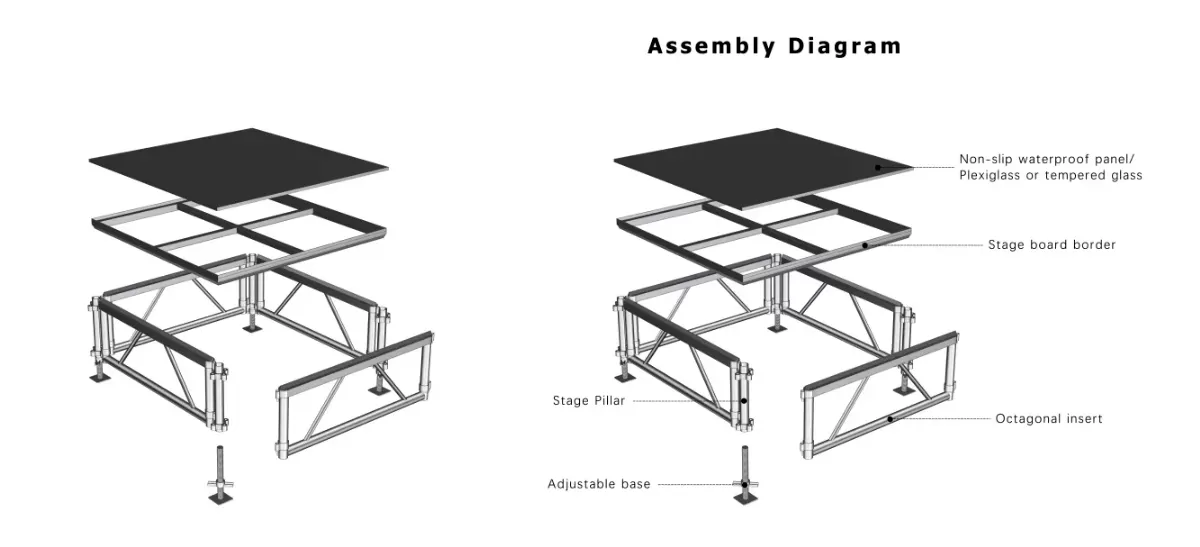

1.22* 1.22m, 1.22* 2.44m assembled stage, composed of bracket, column, adjustable base, stage board (anti-slide board, laminating board 18mm). The columns and supports of each stage and the adjacent stage are shared, so the structure is very firm after being connected, and it is easy to disassemble and install. The stage surface of the aluminium stage deck for sale is composed of double-sided laminating board and aluminum frame, which has the characteristics of good fire resistance, wear resistance, no damage, strong decoration and so on. The stage frame of this assembly stage is made of high hardness aluminum alloy material, with firm structure and beautiful appearance, enhancing the overall value of the assembly stage.
| Layer board, Stage frame, Stage support, Lifting adjustment sleeve, Adjustable foot. | ||||||
| The Layer board is used 18mm thickness | plywood, bamboo plywood, fireproof and waterproof board tempered glass, plexiglass stage foot and other accessories which are made of aluminum alloy. | |||||
| Regular height | 1.22*1.22M/1.22*2.44M | |||||
| Adjustable height | 0.6m~1.1m/0.8~1.1m 0.6~0.85m/0.8~1.3m | |||||
| Non-adjustable Standard height grade of stage | 0.3m/0.4m/0.5m/ 0.6m/0.8m/1.0m/ 1.2m/1.4m/1.6m | |||||

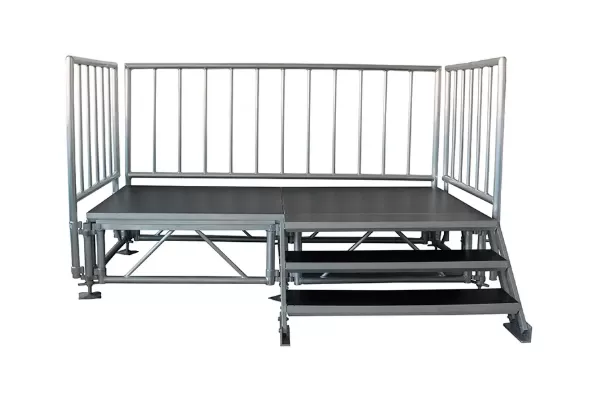

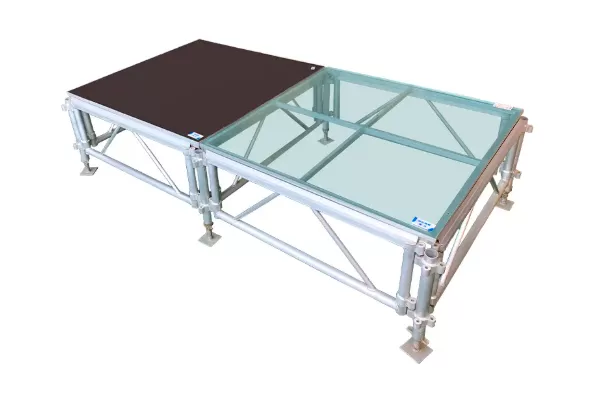

| Aluminum alloy moving stage | Assembling stage |
 |  |

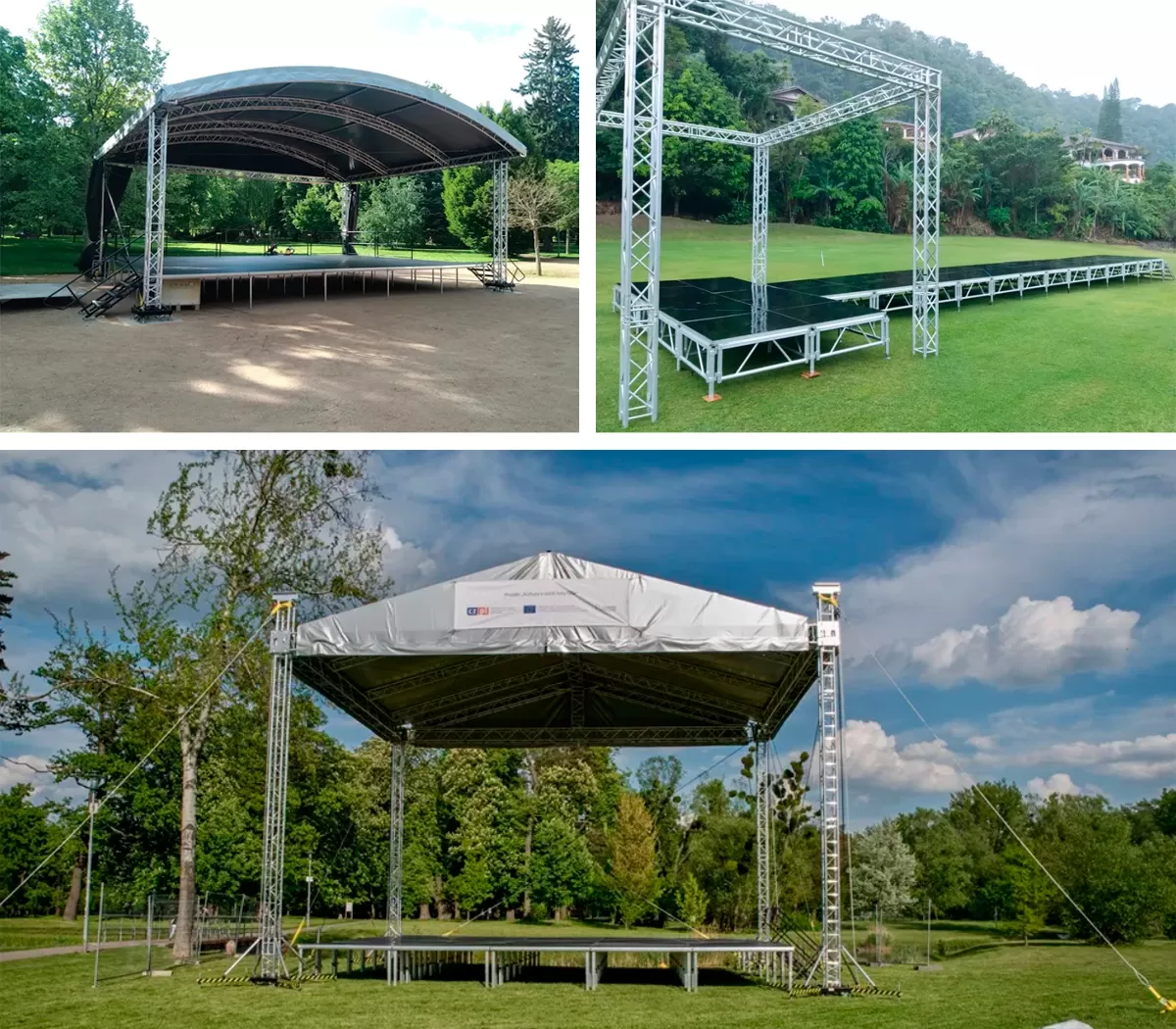

| Event | |
 |
Modular Design: Facilitates customization to suit different event sizes and layouts.
High Load Capacity: Supports heavy equipment such as lighting, sound systems, and screens.
Rapid Assembly: Components are pre-engineered for quick and efficient setup.
Durable Construction: Made from corrosion-resistant aluminum alloys for longevity and reliability.
Versatile Application: Suitable for a wide range of events, from small gatherings to large-scale productions.
